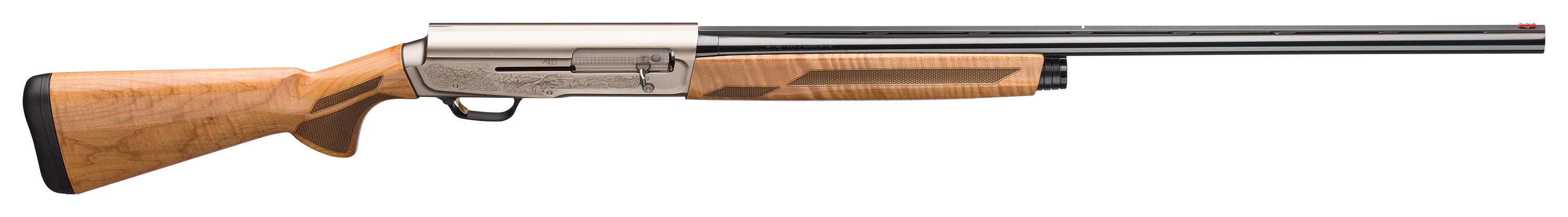

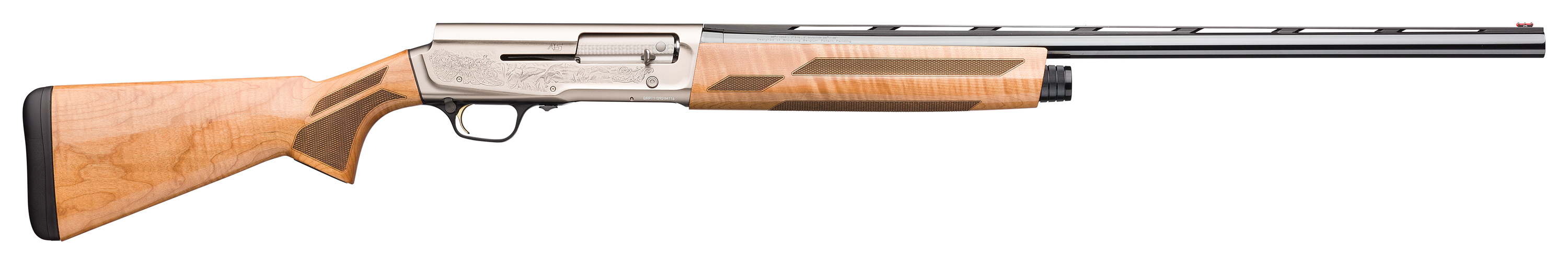

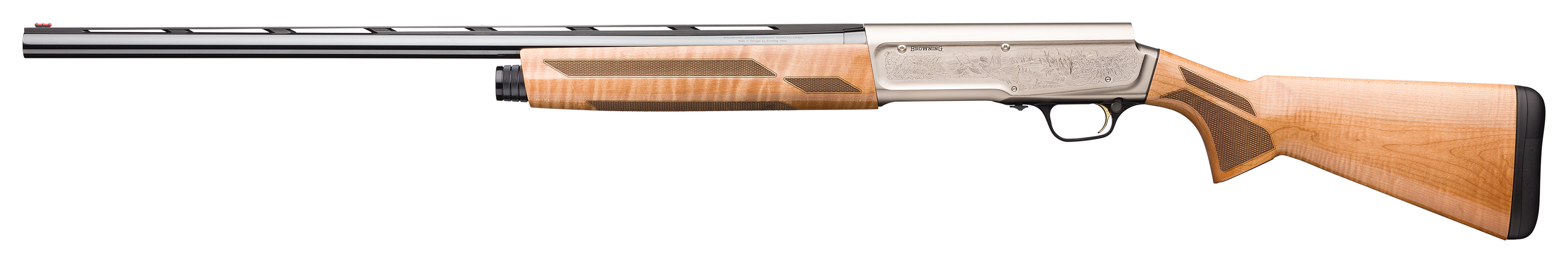

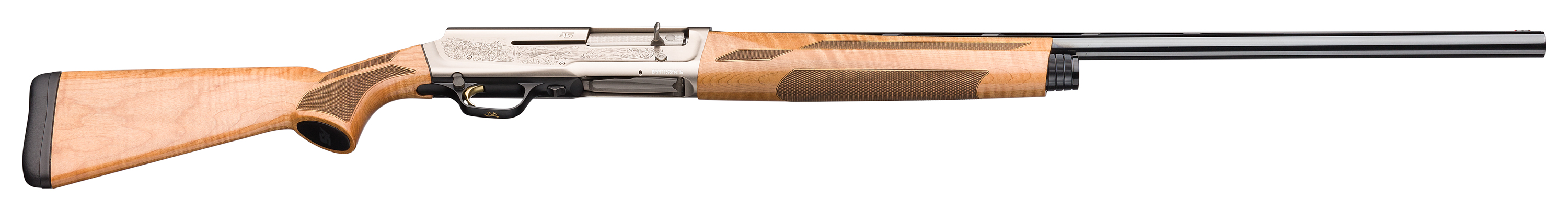

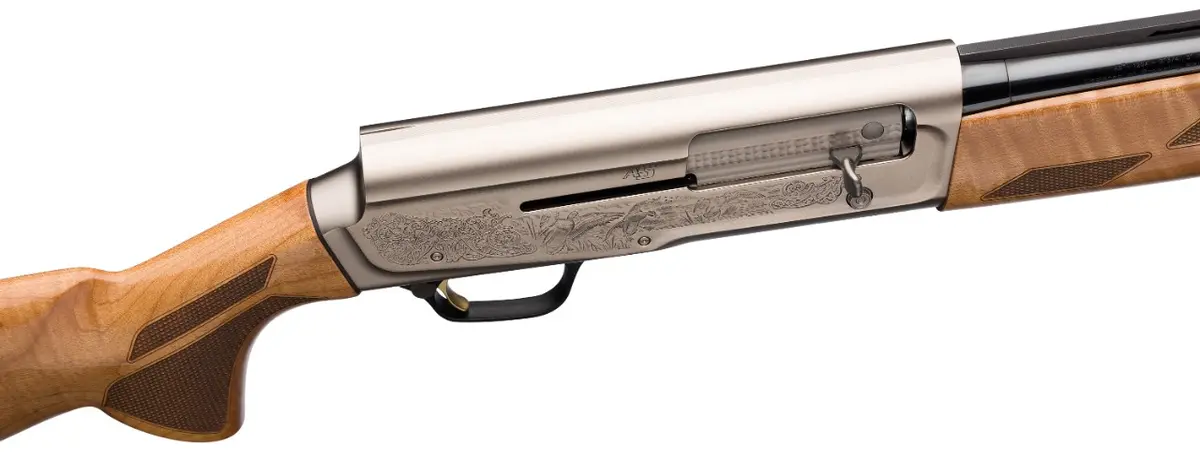

A5 Ultimate Maple

Overview

Enhanced Performance. The combination of high grade maple and engraved nickel are striking to behold, especially when paired with the sharp lines and handsome styling of the Browning A5. The Ultimate Maple is the finest A5 produced to date, ready to satisfy your desire to have a shotgun with an appearance that matches its performance.

Building on The Legend. The original Browning Auto-5 is considered to be nothing less than a legend in the hunting and shooting sports. Though this A5 shares only the name and humpback receiver profile with John M. Browning's original autoloader, these new guns build on the legacy of reliability and performance earned by their namesake.

The Humpback works. The humpback-shaped receiver of the Browning A5 may bring back fond memories, but make no mistake, this isn’t your Grandpa’s shotgun. The Kinematic Drive System makes the A5 the most reliable, fastest cycling, best balanced and softest shooting recoil-operated autoloader on the planet.

Kinematic Drive. In its simplest term, kinetic energy is the energy of motion. The Browning A5 makes better use of kinetic energy with its powerful, short recoil-operated Kinematic Drive System. Kinematic Drive harnesses recoil energy and converts it into the mechanical motion needed to operate the action. This concept is tried and true, and now perfected by the company that broke ground first with autoloading shotguns. The beauty of Kinematic Drive is the simplicity of design for consistent, reliable function with any load and under the full extremes of weather, temperature, moisture and grime. This gun is designed to work, come hell or high water. Operation is clean because gases are sent out the barrel and away from the action. There’s also extreme load versatility. The extensively tested Kinematic Drive offers reliable performance with virtually all loads down to 1-ounce field loads with no adjustments.

A5 Ultimate Maple Features

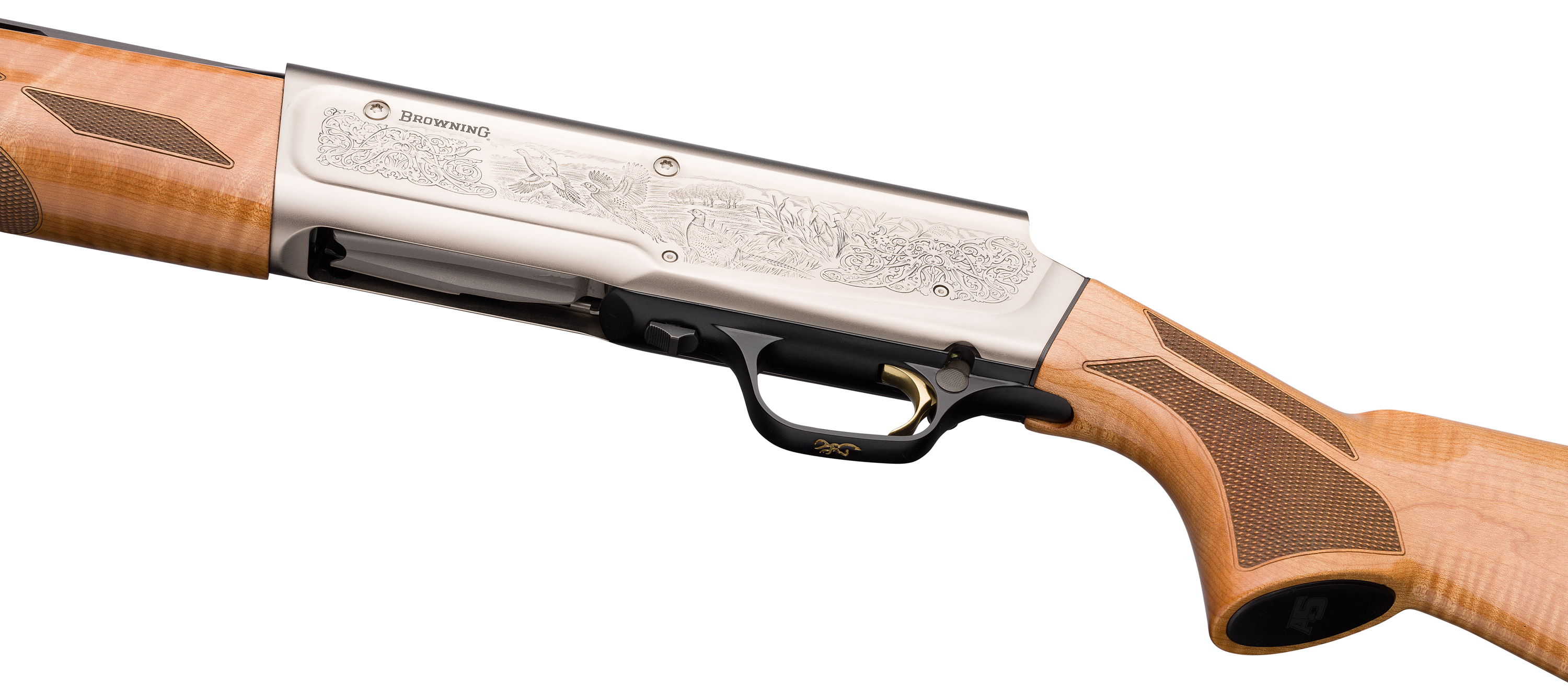

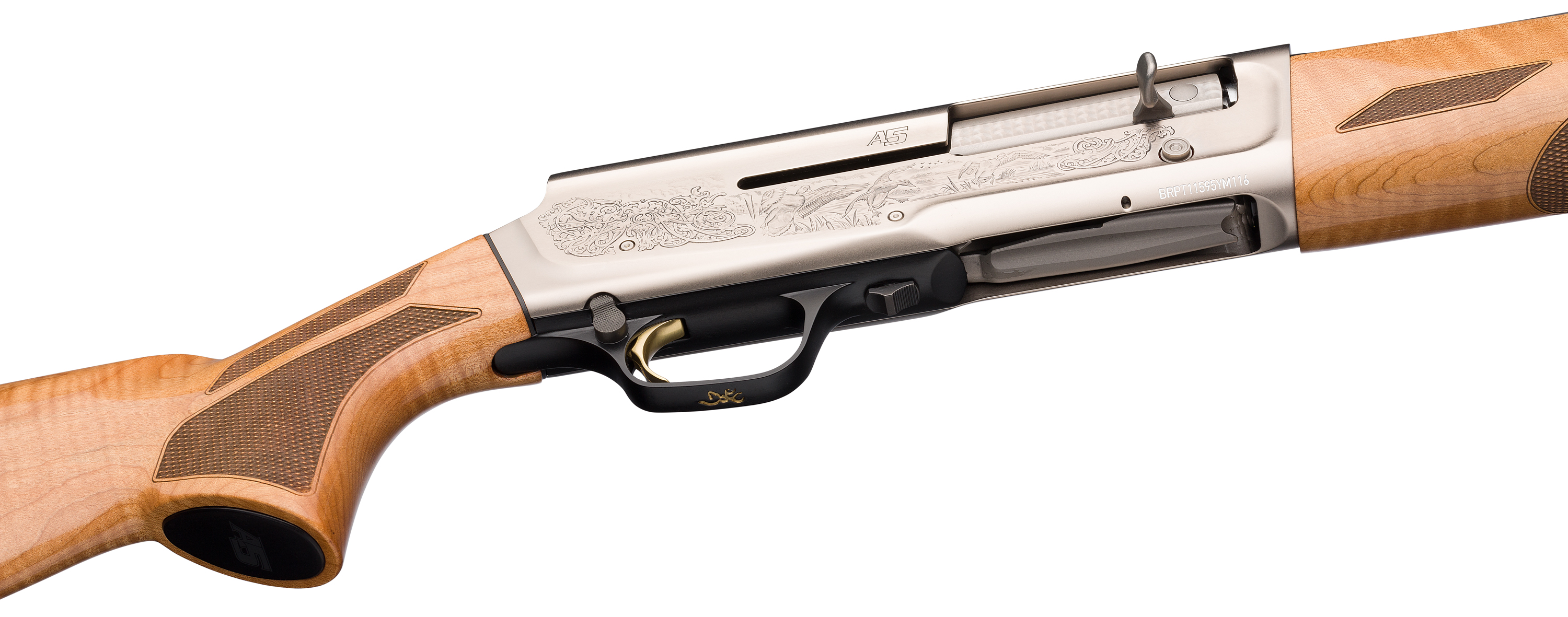

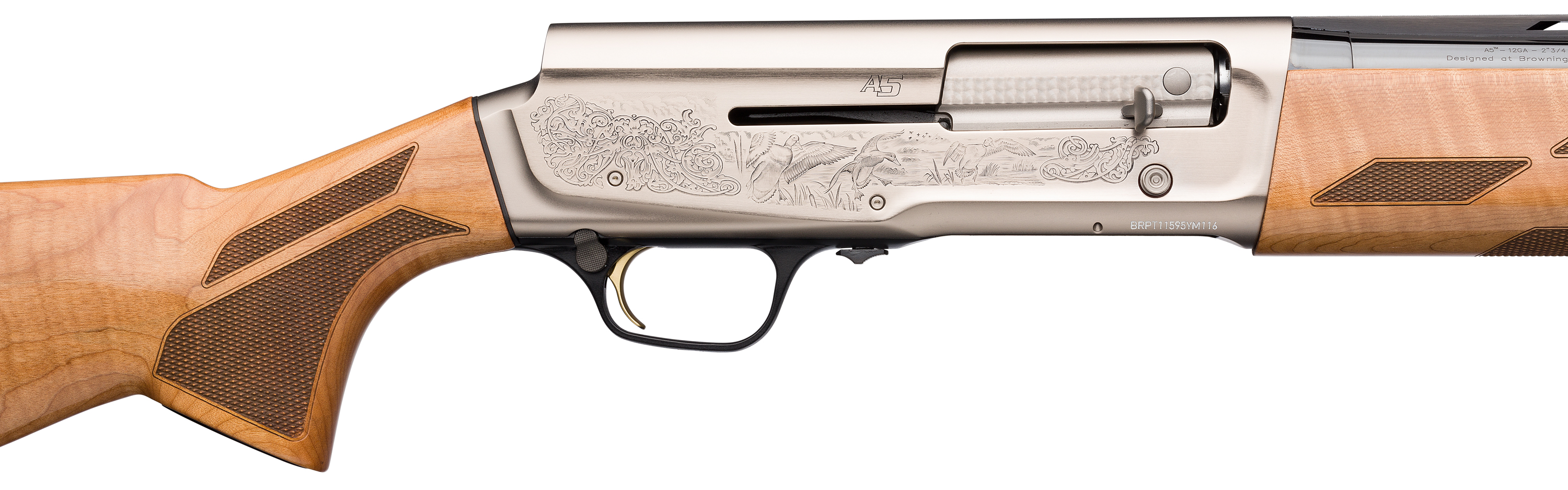

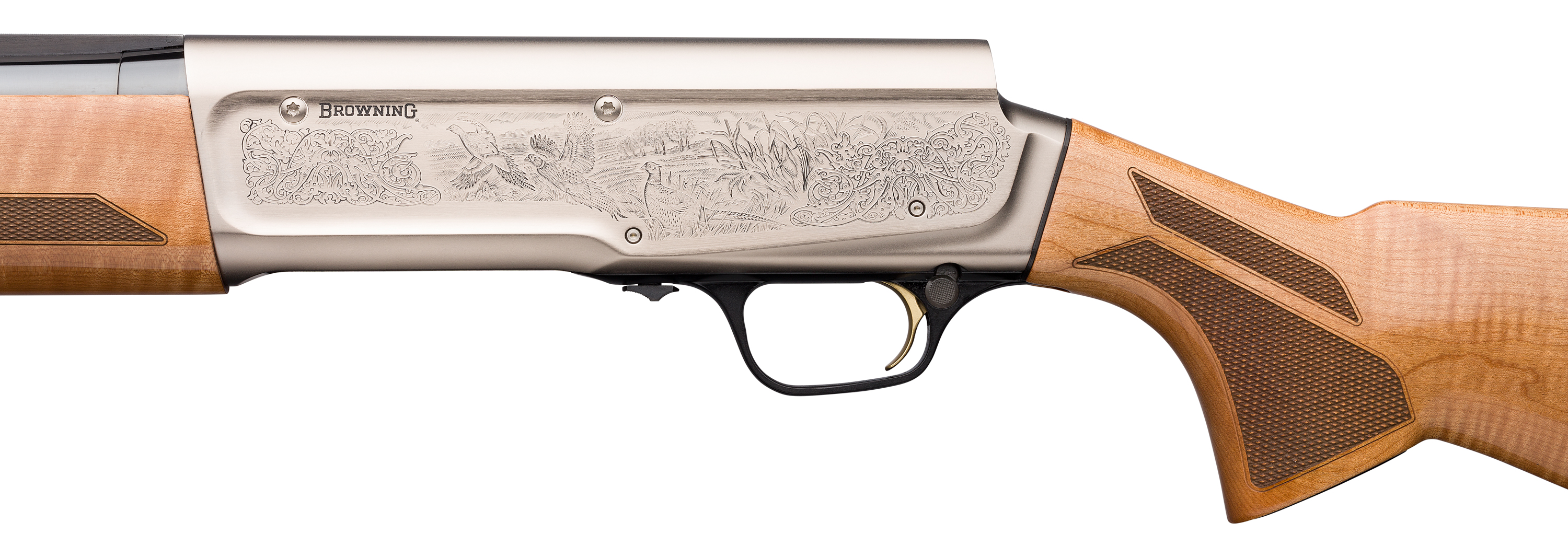

Strong, lightweight aluminum alloy reciever with satin nickel finish, brushed accents and scroll engraving pattern that depicts pheasants on the left side and mallards on the right side
Gloss finish Grade AAAA maple stock with vertical grip
Shim adjustable for length of pull, cast and drop
22 lines-per-inch checkering
Three Invector-DS choke tubes
Fiber-optic front sight and ivory mid-bead
Inflex recoil pad
ABS case included
Ideal for hunting/sporting clays

A5 Features

Specifications

Item Number 0119063005	UPC 023614997405
Gauge 12	Chamber Length 3"
Barrel Length 26"	Overall Length 47 5/8"
Length of Pull 14 1/4"	Drop at Comb 1 3/4"
Drop at Heel 2"	Weight 6 lbs 11 oz
Magazine Capacity 4, 2 3/4" shells	Rib Width 1/4"
Barrel Finish High Gloss	Stock Finish Gloss
Wood Grade AAAA	Chokes Included Full, Modified, Improved Cylinder
Receiver Finish Satin	Chamber Finish Chrome Plated Chamber
Front Sight Fiber Optic	Choke System Invector-DS Flush
Barrel Material Steel	Stock Material Maple
Recoil Pad Inflex 2, Large	Checkering Cut 22 LPI
Sling Swivel Studs None	Receiver Material Aluminum Alloy
Trigger Finish Gold Plated	Trigger Guard Finish Matte Black
Bolt Slide Finish Brushed Nickel	Magazine Type Tubular
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Choke Wrench Included T-Wrench
MSRP $2,249.99

Item Number 0119063004	UPC 023614997412
Gauge 12	Chamber Length 3"
Barrel Length 28"	Overall Length 49 5/8"
Length of Pull 14 1/4"	Drop at Comb 1 3/4"
Drop at Heel 2"	Weight 6 lbs 13 oz
Magazine Capacity 4, 2 3/4" shells	Rib Width 1/4"
Barrel Finish High Gloss	Stock Finish Gloss
Wood Grade AAAA	Chokes Included Full, Modified, Improved Cylinder
Receiver Finish Satin	Chamber Finish Chrome Plated Chamber
Front Sight Fiber Optic	Choke System Invector-DS Flush
Barrel Material Steel	Stock Material Maple
Recoil Pad Inflex 2, Large	Checkering Cut 22 LPI
Sling Swivel Studs None	Receiver Material Aluminum Alloy
Trigger Finish Gold Plated	Trigger Guard Finish Matte Black
Bolt Slide Finish Brushed Nickel	Magazine Type Tubular
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Choke Wrench Included T-Wrench
MSRP $2,249.99
