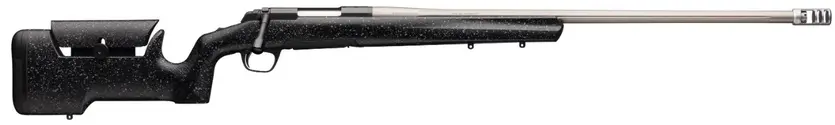

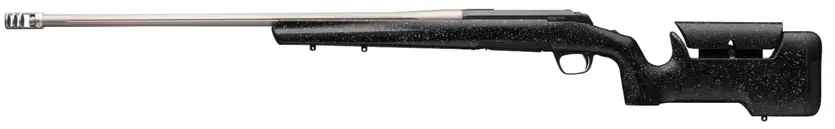

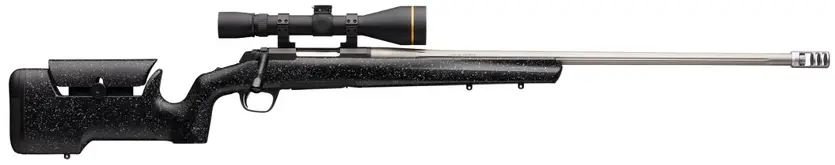

X-Bolt Max LR - Bolt-Action Rifle

Overview

The popularity of long-range target shooting and longer range hunting has more shooters honing their ammunition and rifle setup to help ensure that their shot at a once-in-a-lifetime trophy finds its mark. The Max stock is designed to help improve your shooting confidence by offering the adjustments necessary to use the optics you want and get the repeatable fit you need.

NOTE: Unless specifically listed as included with a firearm, accessories shown such as scopes, optical sights, rings, ring mounts, optic rails, bipod rails, ammunition, etc. are NOT included. Accessories are available at authorized Browning dealers and here on Browning.com.

X-Bolt Max LR Features

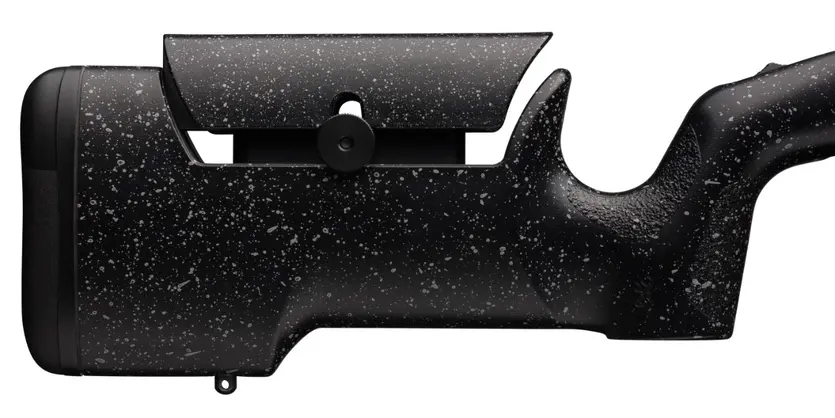

Composite Max stock offers an adjustable comb to dial-in eye-to-scope alignment
Black and gray textured stock finish
Stainless steel, fluted heavy sporter barrel for long-range accuracy

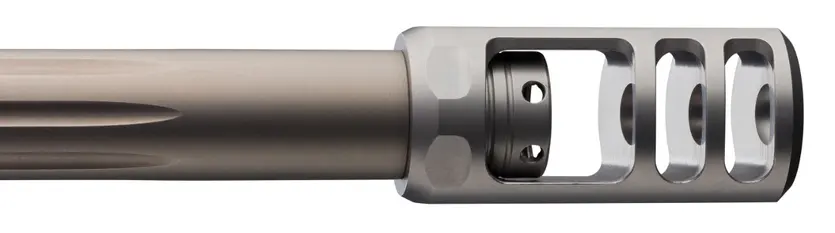

Recoil Hawg muzzle brake reduces recoil up to 76% (thread protector included)

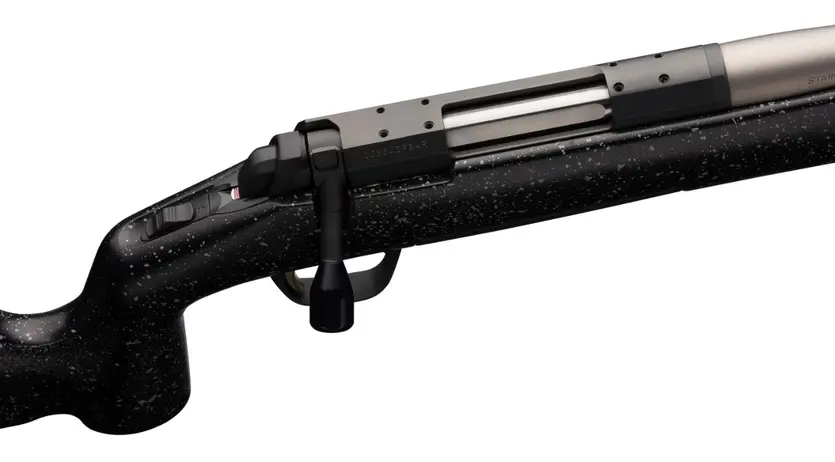

Extended bolt handle

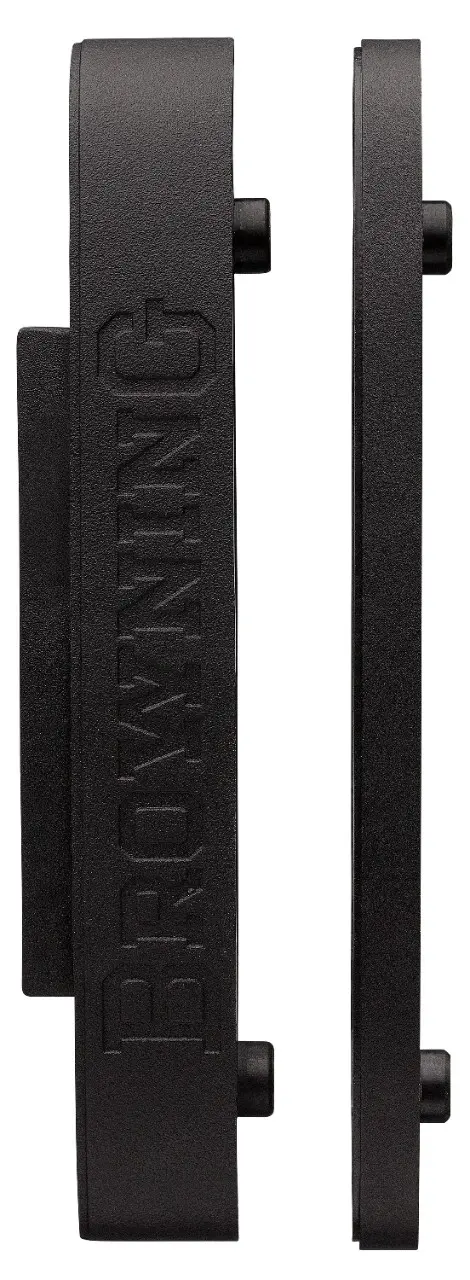

1/4" and 2/3" length of pull spacers included
Three swivel studs for sling and bipod use

X-Bolt Features

Free-floated barrel that is bedded in the front and the rear of the action for stability and to help maintain barrel-to-stock spacing for consistent accuracy.
Bolt unlock button works in conjunction with the top-tang safety to provide an added measure of safety during checking and unloading of the chamber.
Short 60° bolt lift is fast cycling and allows you to work the bolt quickly
Detachable rotary magazine
Three-lever Feather Trigger
X-Lock scope mount features a four screw per base
Inflex Recoil Pad

Introduction Page / Full Feature List

Specifications

Item Number 035438282	UPC 023614679301
Action Length Short Action	Caliber 6.5 CREEDMOOR
Barrel Length 26"	Overall Length 46 1/8"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 6 oz
Magazine Capacity 4	Twist Rate 7"
Barrel Finish Satin Gray	Stock Finish Black Gray Splatter
Receiver Finish Matte Black	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,429.99

Item Number 035438294	UPC 023614738077
Action Length Short Action	Caliber 6.5 PRC
Barrel Length 26"	Overall Length 46 1/8"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 6 oz
Magazine Capacity 3	Twist Rate 7"
Barrel Finish Satin Gray	Stock Finish Black Gray Splatter
Receiver Finish Matte Black	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,479.99

Item Number 035438218	UPC 023614679318
Action Length Short Action	Caliber 308 Win
Barrel Length 26"	Overall Length 46 1/8"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 6 oz
Magazine Capacity 4	Twist Rate 10"
Barrel Finish Satin Gray	Stock Finish Black Gray Splatter
Receiver Finish Matte Black	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,429.99

Item Number 035438246	UPC 023614679325
Action Length Short Action	Caliber 300 WSM
Barrel Length 26"	Overall Length 46 1/8"
Length of Pull 13 3/4"	Drop at Comb Adj
Drop at Heel Adj	Weight 8 lbs 3 oz
Magazine Capacity 3	Twist Rate 10"
Barrel Finish Satin Gray	Stock Finish Black Gray Splatter
Receiver Finish Matte Black	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,479.99

Item Number 035438299	UPC 023614851295
Action Length Short Action	Caliber 6.8 Western
Barrel Length 26"	Overall Length 46 1/8"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 7 oz
Magazine Capacity 3	Twist Rate 7 1/2"
Barrel Finish Satin Gray	Stock Finish Black Gray Splatter
Receiver Finish Matte Black	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,479.99

Item Number 035438298	UPC 023614857341
Action Length Long Action	Caliber 7MM PRC
Barrel Length 26"	Overall Length 46 7/8"
Length of Pull 13 3/4"	Drop at Comb Adj Adj
Drop at Heel Adj Adj	Weight 8 lbs 3 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Satin Gray	Stock Finish Black Gray Splatter
Receiver Finish Matte Black	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Checkering Textured Grip Panels	Sling Swivel Studs Matte Blued
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish High Gloss	Magazine Type Detachable
Muzzle Threading 5/8 - 24 SR	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,479.99

Item Number 035438227	UPC 023614679349
Action Length Long Action	Caliber 7MM REM MAG
Barrel Length 26"	Overall Length 46 7/8"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 7 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Satin Gray	Stock Finish Black Gray Splatter
Receiver Finish Matte Black	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Checkering Textured Grip Panels	Sling Swivel Studs Matte Blued
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish High Gloss	Magazine Type Detachable
Muzzle Threading 5/8 - 24 SR	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,479.99

Item Number 035438288	UPC 023614679356
Action Length Long Action	Caliber 28 Nosler
Barrel Length 26"	Overall Length 46 7/8"
Length of Pull 13 3/4"	Drop at Comb Adj
Drop at Heel Adj	Weight 8 lbs 7 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Satin Gray	Stock Finish Black Gray Splatter
Receiver Finish Matte Black	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,529.99

Item Number 035438229	UPC 023614679363
Action Length Long Action	Caliber 300 WIN MAG
Barrel Length 26"	Overall Length 46 7/8"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 7 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Satin Gray	Stock Finish Black Gray Splatter
Receiver Finish Matte Black	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,479.99

Item Number 035438297	UPC 023614741039
Action Length Long Action	Caliber 300 PRC
Barrel Length 26"	Overall Length 46 7/8"
Length of Pull 13 3/4"	Drop at Comb Adj
Drop at Heel Adj	Weight 8 lbs 7 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Satin Gray	Stock Finish Black Gray Splatter
Receiver Finish Matte Black	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,479.99

Item Number 035438244	UPC 023614735045
Action Length Long Action	Caliber 300 REM ULTRA MAG
Barrel Length 26"	Overall Length 46 7/8"
Length of Pull 13 3/4"	Drop at Comb Adj
Drop at Heel Adj	Weight 8 lbs 7 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Satin Gray	Stock Finish Black Gray Splatter
Receiver Finish Matte Black	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,479.99

Item Number 035438295	UPC 023614738138
Action Length Long Action	Caliber 30 Nosler
Barrel Length 26"	Overall Length 46 7/8"
Length of Pull 13 3/4"	Drop at Comb Adj
Drop at Heel Adj	Weight 8 lbs 7 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Satin Gray	Stock Finish Black Gray Splatter
Receiver Finish Matte Black	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,459.99
