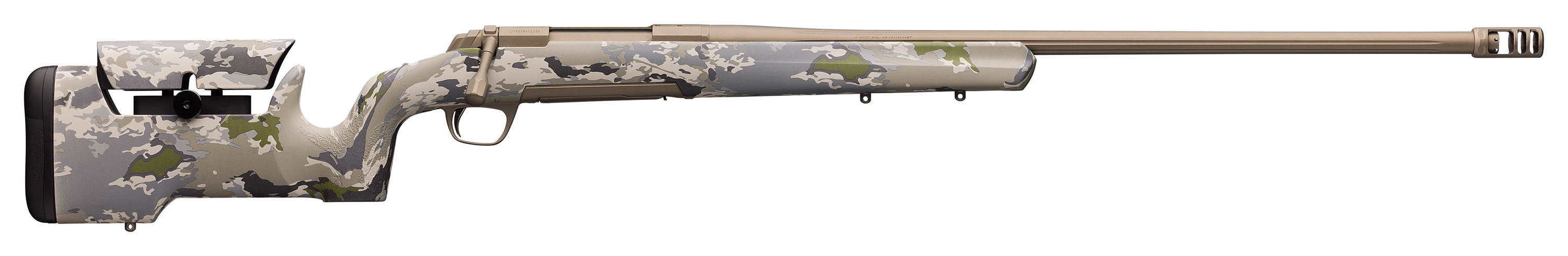

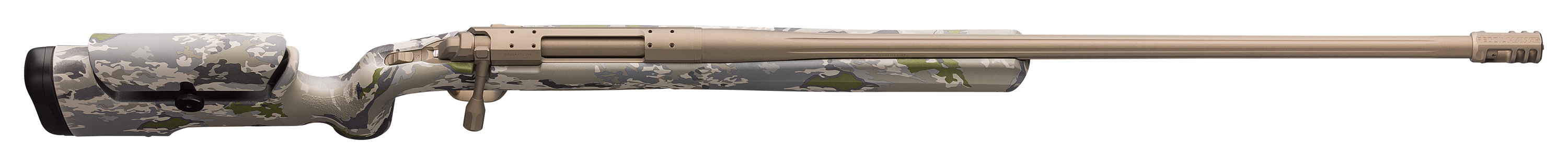

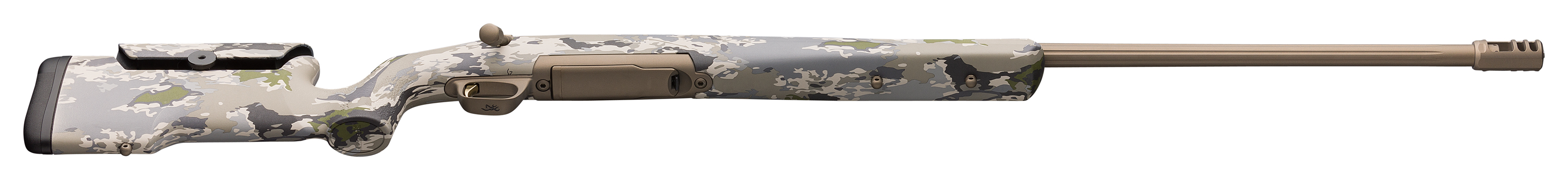

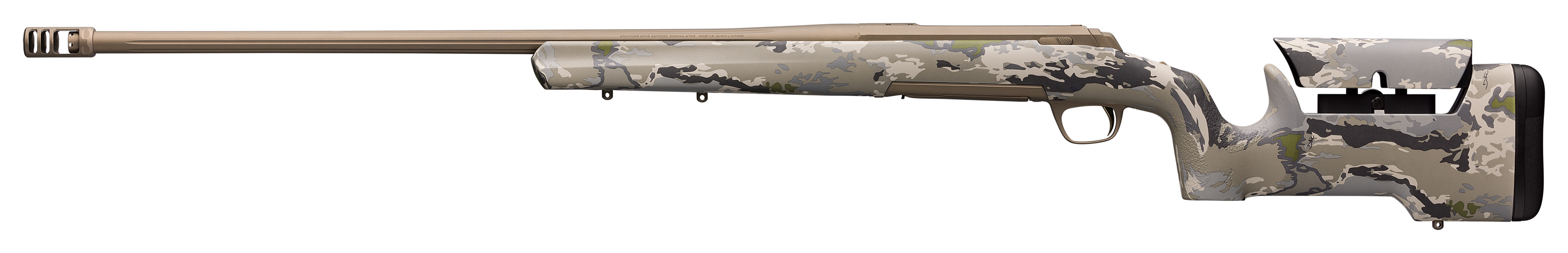

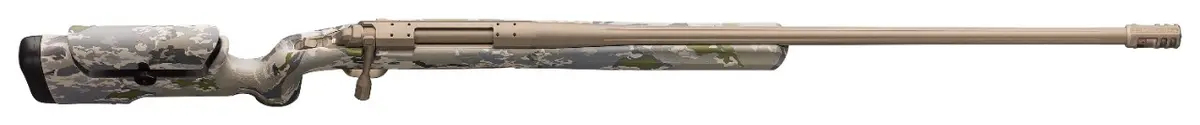

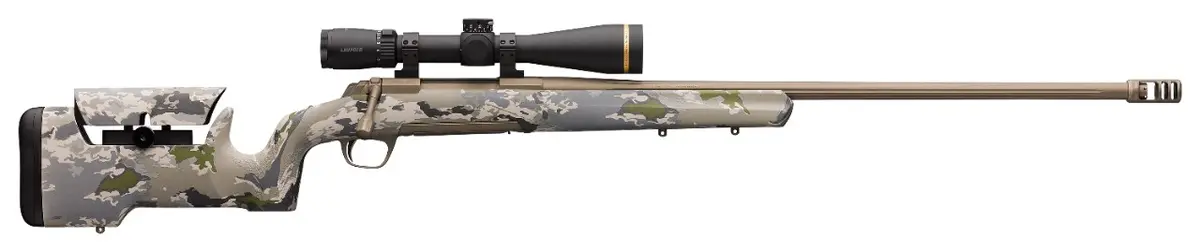

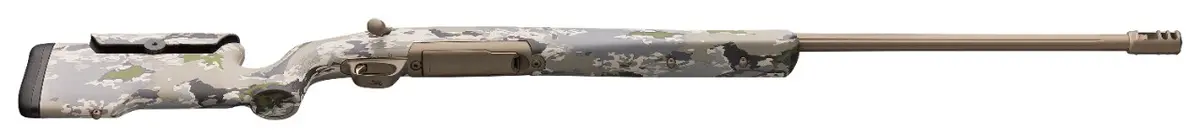

X-Bolt Hell's Canyon Max LR

Overview

The popularity of long-range target shooting and longer range hunting has more shooters honing their ammunition and rifle setup to help ensure that their shot at a once-in-a-lifetime trophy finds its mark.

The Max stock found on the Browning X-Bolt Hell's Canyon Max Long Range rifle is designed to help improve your shooting confidence by offering the adjustments necessary to adjust the stock to fit your body and dial-in fit for shooting at extended ranges. The easy to adjust comb places your eye in perfect alignment with your optics. Your ideal length of pull measurement is achieved with the included stock spacers. The wide fore-end has a flat bottom for added stability from the bench. A pair of swivel studs up front allow you to mount both a sling and bipod. A vertical grip places your hand in perfect position, from the bench or prone, to manipulate the tang safety and optimize reach to the trigger. Browning OVIX camouflage provides maximum concealment against a wide variety of natural backdrops.

NOTE: Unless specifically listed as included with a firearm, accessories shown such as scopes, optical sights, rings, ring mounts, optic rails, bipod rails, ammunition, etc. are NOT included. Accessories are available at authorized Browning dealers and here on Browning.com.

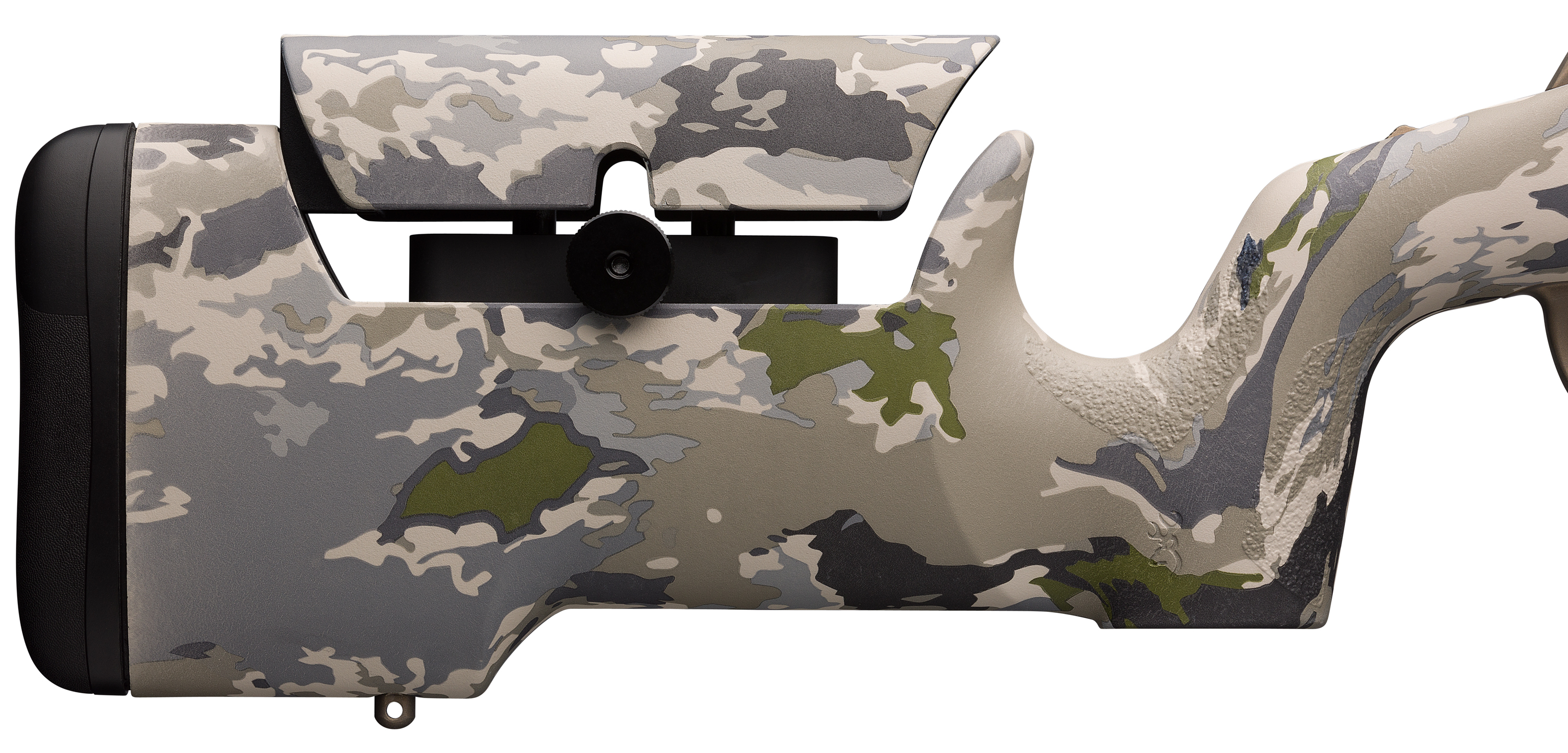

Composite Max stock offers an adjustable comb to dial-in eye-to-scope alignment and includes spacers for length of pull adjustment
Versatile Browning OVIX camouflage
Heavy sporter contour fluted barrel with 5/8"-24 TPI suppressor threads (thread protector included)

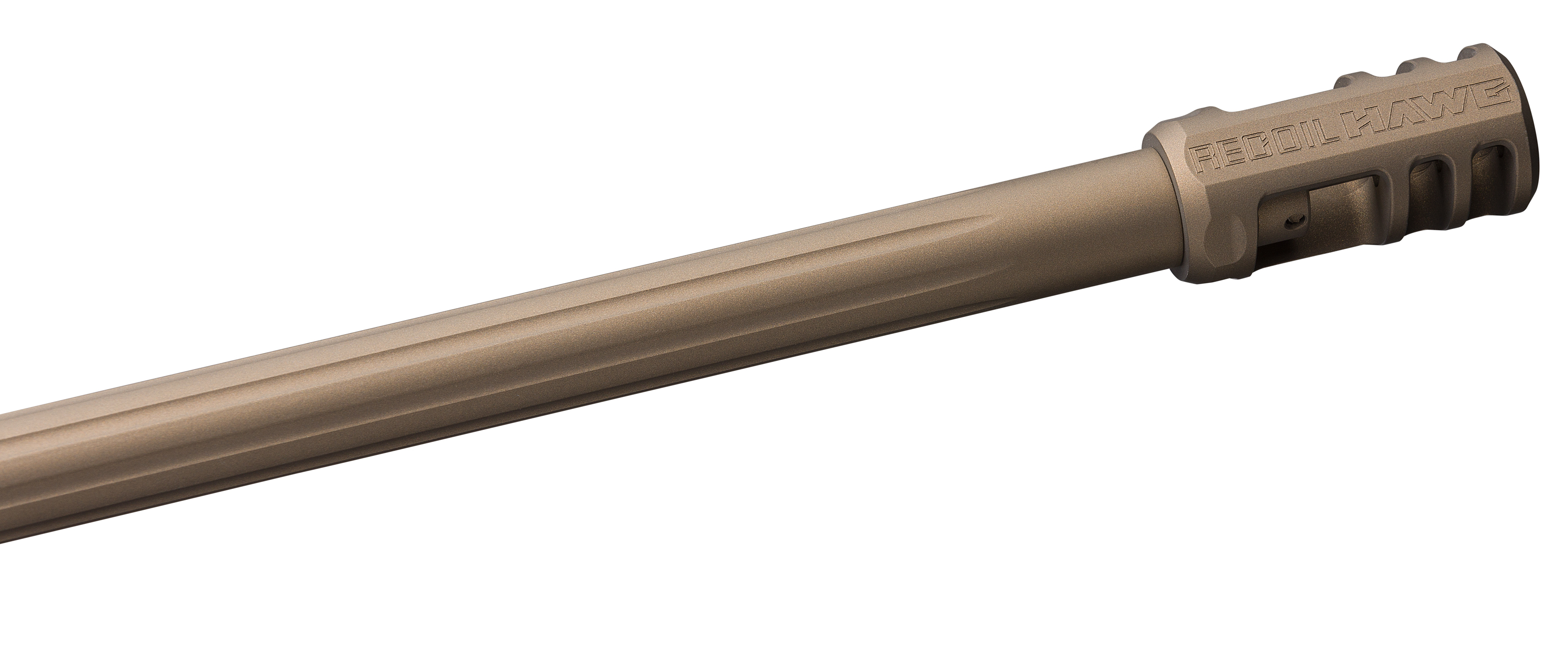

Recoil Hawg muzzle brake reduces recoil up to 76%
Smoked Bronze Cerakote finish protects better than traditional bluing or bare stainless steel

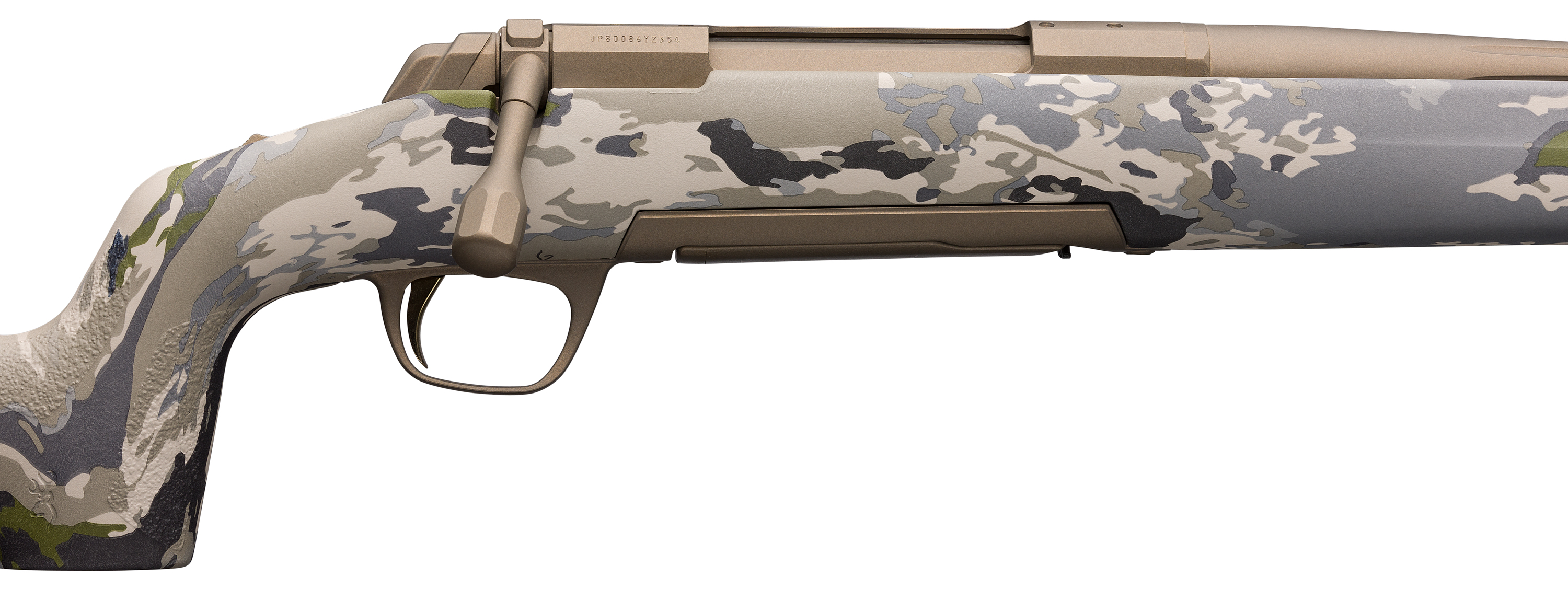

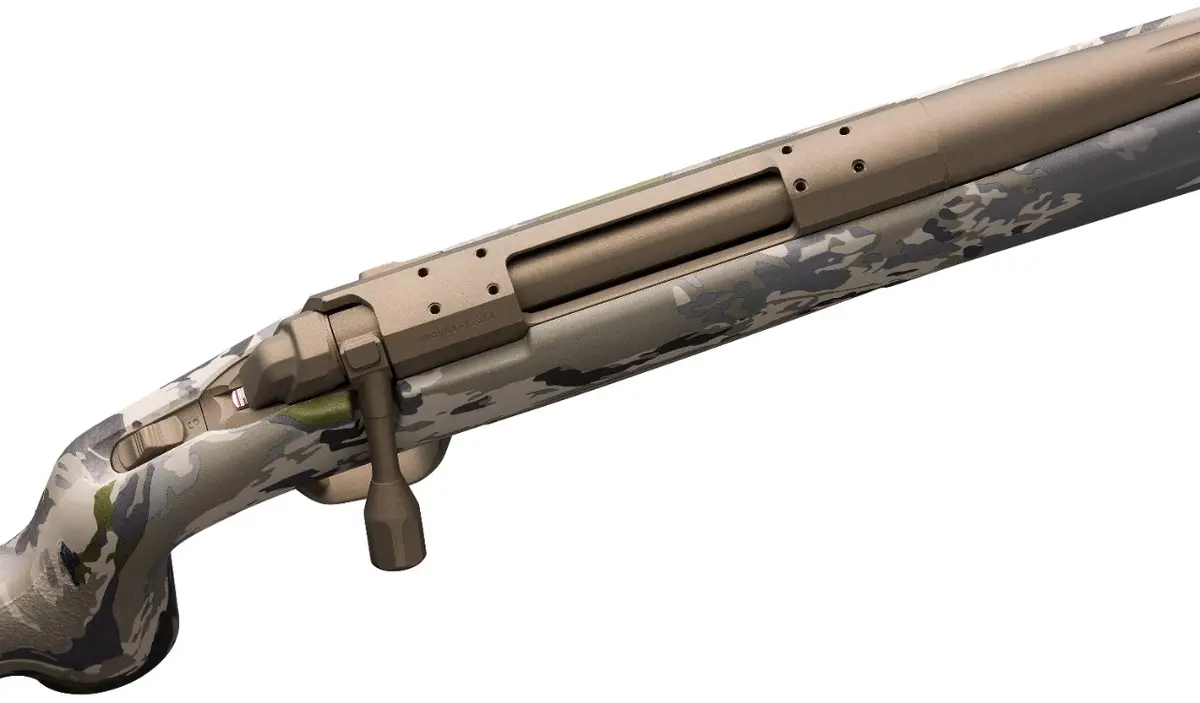

Extended bolt handle
1/4" and 2/3" length of pull spacers included

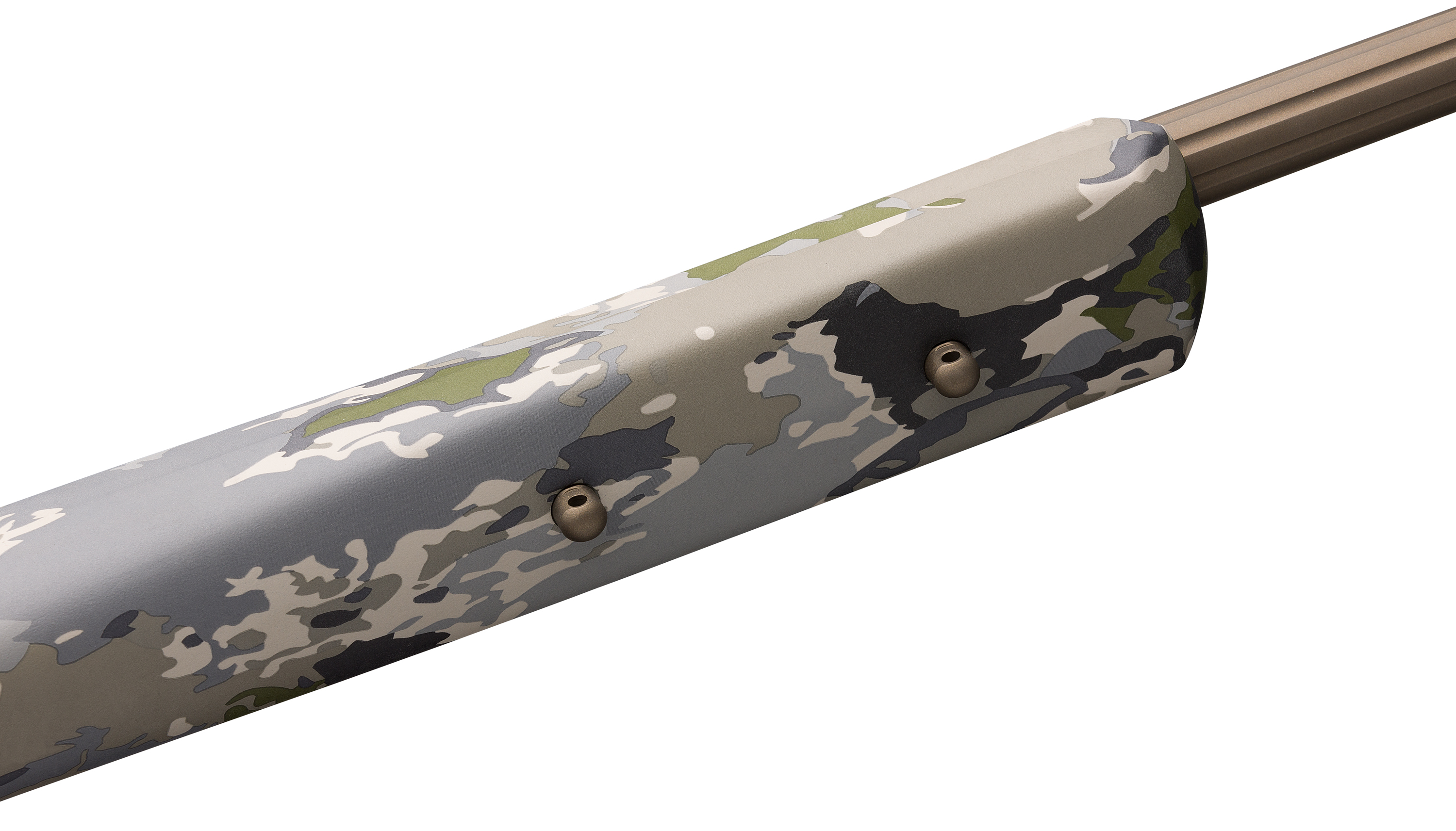

Three swivel studs for sling and bipod use

X-Bolt Features

Free-floated barrel that is bedded in the front and the rear of the action for stability and to help maintain barrel-to-stock spacing for consistent accuracy.
Bolt unlock button works in conjunction with the top-tang safety to provide an added measure of safety during checking and unloading of the chamber.
Short 60° bolt lift is fast cycling and allows you to work the bolt quickly

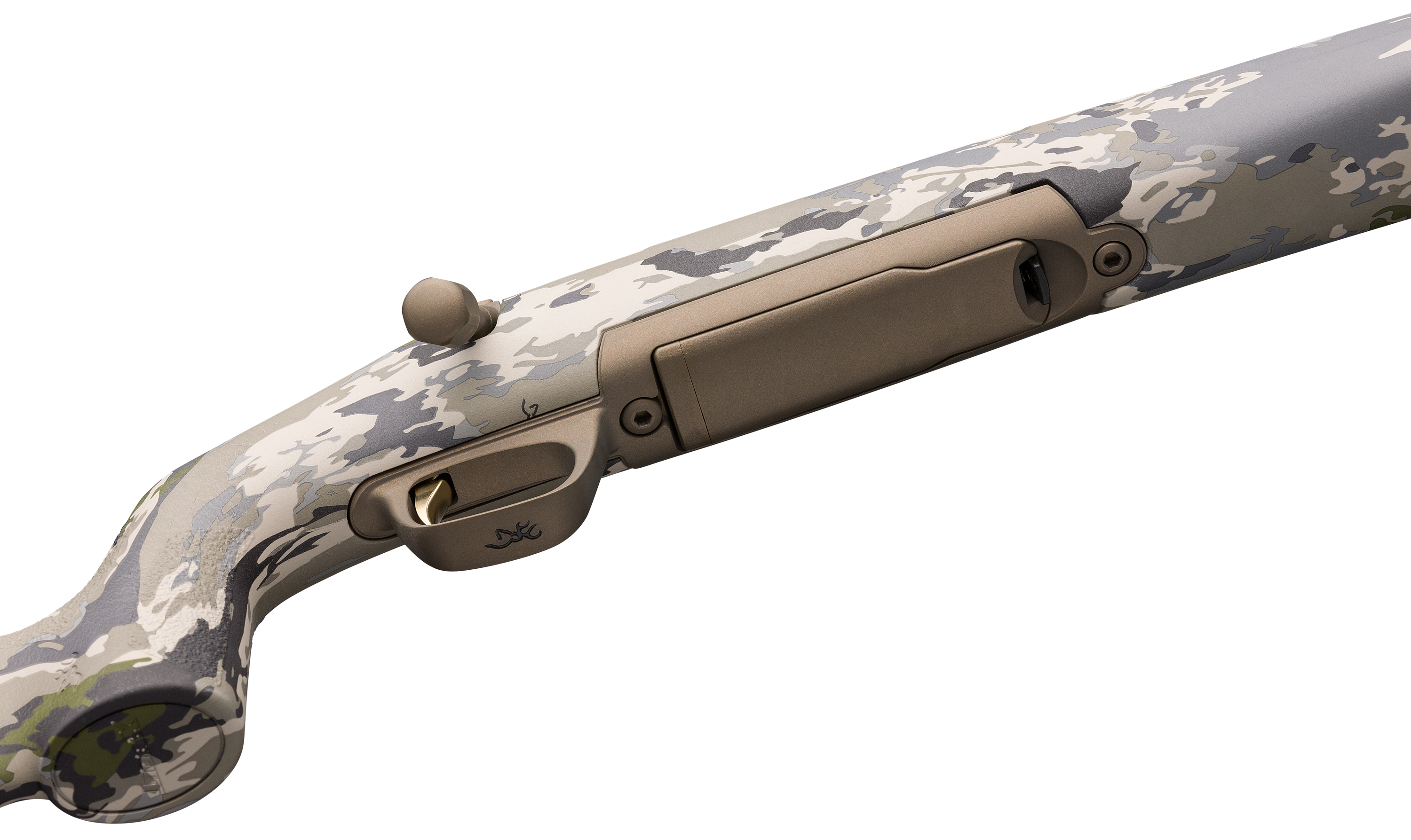

Detachable rotary magazine
Three-lever Feather Trigger
X-Lock scope mount features a four screw per base
Inflex Recoil Pad

Specifications

Item Number 035555224	UPC 023614855972
Action Length Long Action	Caliber 270 Win
Barrel Length 26"	Overall Length 46 3/4"
Length of Pull 13 3/4"	Drop at Comb Adj Adj
Drop at Heel Adj Adj	Weight 8 lbs 7 oz
Magazine Capacity 4	Twist Rate 7 1/2"
Barrel Finish Smoked Bronze Cerakote	Stock Finish Ovix
Receiver Finish Smoked Bronze Cerakote	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Checkering Textured Grip Panels	Sling Swivel Studs Cerakote
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish High Gloss	Magazine Type Detachable
Muzzle Threading 5/8 - 24 SR	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,599.99

Item Number 035555282	UPC 023614852674
Action Length Short Action	Caliber 6.5 CREEDMOOR
Barrel Length 26"	Overall Length 46"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 6 oz
Magazine Capacity 4	Twist Rate 7"
Barrel Finish Smoked Bronze Cerakote	Stock Finish Ovix
Receiver Finish Smoked Bronze Cerakote	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Cerakote	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,599.99

Item Number 035555294	UPC 023614852698
Action Length Short Action	Caliber 6.5 PRC
Barrel Length 26"	Overall Length 46"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 6 oz
Magazine Capacity 3	Twist Rate 7"
Barrel Finish Smoked Bronze Cerakote	Stock Finish Ovix
Receiver Finish Smoked Bronze Cerakote	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Cerakote	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,629.99

Item Number 035555299	UPC 023614852704
Action Length Short Action	Caliber 6.8 Western
Barrel Length 26"	Overall Length 46"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 6 oz
Magazine Capacity 3	Twist Rate 7 1/2"
Barrel Finish Smoked Bronze Cerakote	Stock Finish Ovix
Receiver Finish Smoked Bronze Cerakote	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Cerakote	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,629.99

Item Number 035555298	UPC 023614857259
Action Length Long Action	Caliber 7MM PRC
Barrel Length 26"	Overall Length 46 7/8"
Length of Pull 13 3/4"	Drop at Comb Adj Adj
Drop at Heel Adj Adj	Weight 8 lbs 0 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Smoked Bronze Cerakote	Stock Finish Ovix
Receiver Finish Smoked Bronze Cerakote	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Checkering Textured Grip Panels	Sling Swivel Studs Cerakote
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish High Gloss	Magazine Type Detachable
Muzzle Threading 5/8 - 24 SR	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,629.99

Item Number 035555227	UPC 023614852711
Action Length Long Action	Caliber 7MM REM MAG
Barrel Length 26"	Overall Length 46 3/4"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 7 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Smoked Bronze Cerakote	Stock Finish Ovix
Receiver Finish Smoked Bronze Cerakote	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Cerakote	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,629.99

Item Number 035555283	UPC 023614852681
Action Length Long Action	Caliber 280 ACK IMP
Barrel Length 26"	Overall Length 46 3/4"
Length of Pull 13 3/4"	Drop at Comb Adj
Drop at Heel Adj	Weight 8 lbs 7 oz
Magazine Capacity 4	Twist Rate 8"
Barrel Finish Smoked Bronze Cerakote	Stock Finish Ovix
Receiver Finish Smoked Bronze Cerakote	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Cerakote	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,629.99

Item Number 035555288	UPC 023614852728
Action Length Long Action	Caliber 28 Nosler
Barrel Length 26"	Overall Length 46 3/4"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 7 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Smoked Bronze Cerakote	Stock Finish Ovix
Receiver Finish Smoked Bronze Cerakote	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Cerakote	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,679.99

Item Number 035555229	UPC 023614852735
Action Length Long Action	Caliber 300 WIN MAG
Barrel Length 26"	Overall Length 46 3/4"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 7 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Smoked Bronze Cerakote	Stock Finish Ovix
Receiver Finish Smoked Bronze Cerakote	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Cerakote	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,629.99

Item Number 035555297	UPC 023614852766
Action Length Long Action	Caliber 300 PRC
Barrel Length 26"	Overall Length 46 3/4"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 8 lbs 7 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Smoked Bronze Cerakote	Stock Finish Ovix
Receiver Finish Smoked Bronze Cerakote	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Cerakote	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,629.99

Item Number 035555244	UPC 023614852759
Action Length Long Action	Caliber 300 REM ULTRA MAG
Barrel Length 26"	Overall Length 46 3/4"
Length of Pull 13 3/4"	Drop at Comb Adj
Drop at Heel Adj	Weight 8 lbs 3 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish Smoked Bronze Cerakote	Stock Finish Ovix
Receiver Finish Smoked Bronze Cerakote	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs Cerakote	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,629.99
