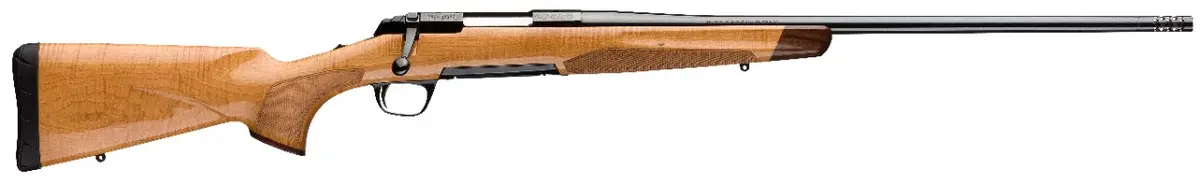

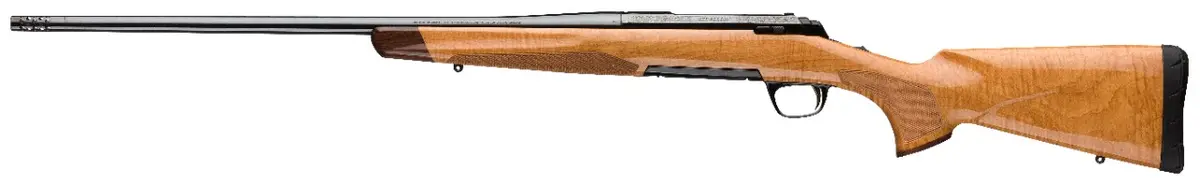

X-Bolt Medallion Maple

Overview

A very special rifle indeed. A maple stock harkens back a few years, but the beauty has always been the king of style. And this rifle is no exception. Take one of these to the range and you will have a lot of visitors. The beautifully figured AAA maple is a joy to look at. Maple is nothing like walnut -- it has a look of its own. And the way it contrasts with the various X-Bolt components is striking. Not to mention the classic rosewood fore-end and pistol grip caps that finish the look down to the last detail.

NOTE: Unless specifically listed as included with a firearm, accessories shown such as scopes, optical sights, rings, ring mounts, optic rails, bipod rails, ammunition, etc. are NOT included. Accessories are available at authorized Browning dealers and here on Browning.com.

X-Bolt Medallion Maple Features

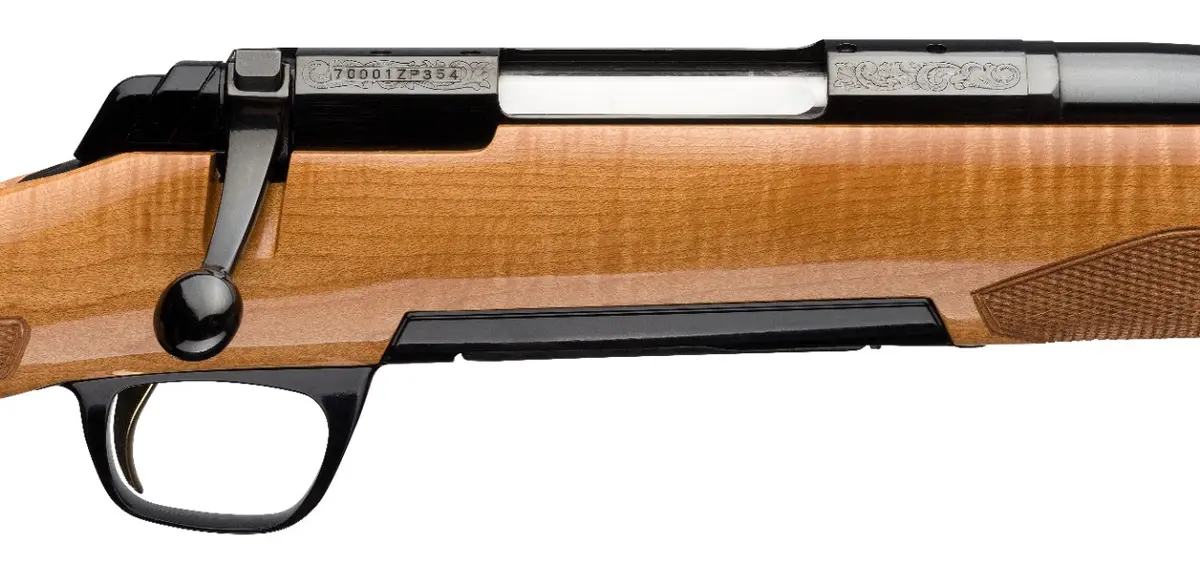

Engraved, polished blued steel receiver
Highly polished blued, sporter weight barrel
Threaded muzzle brake (thread protector included)

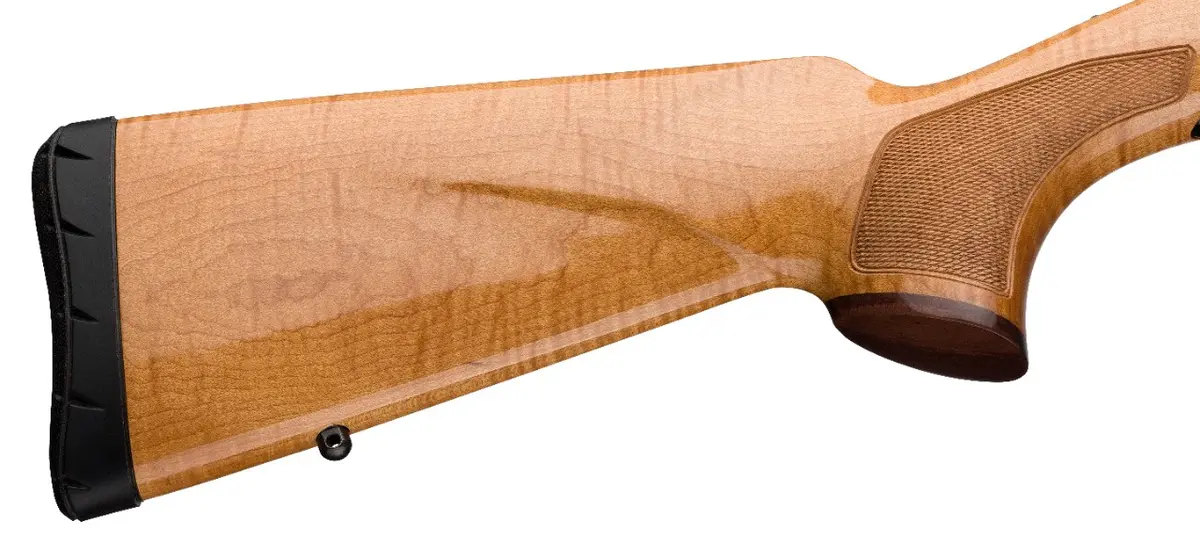

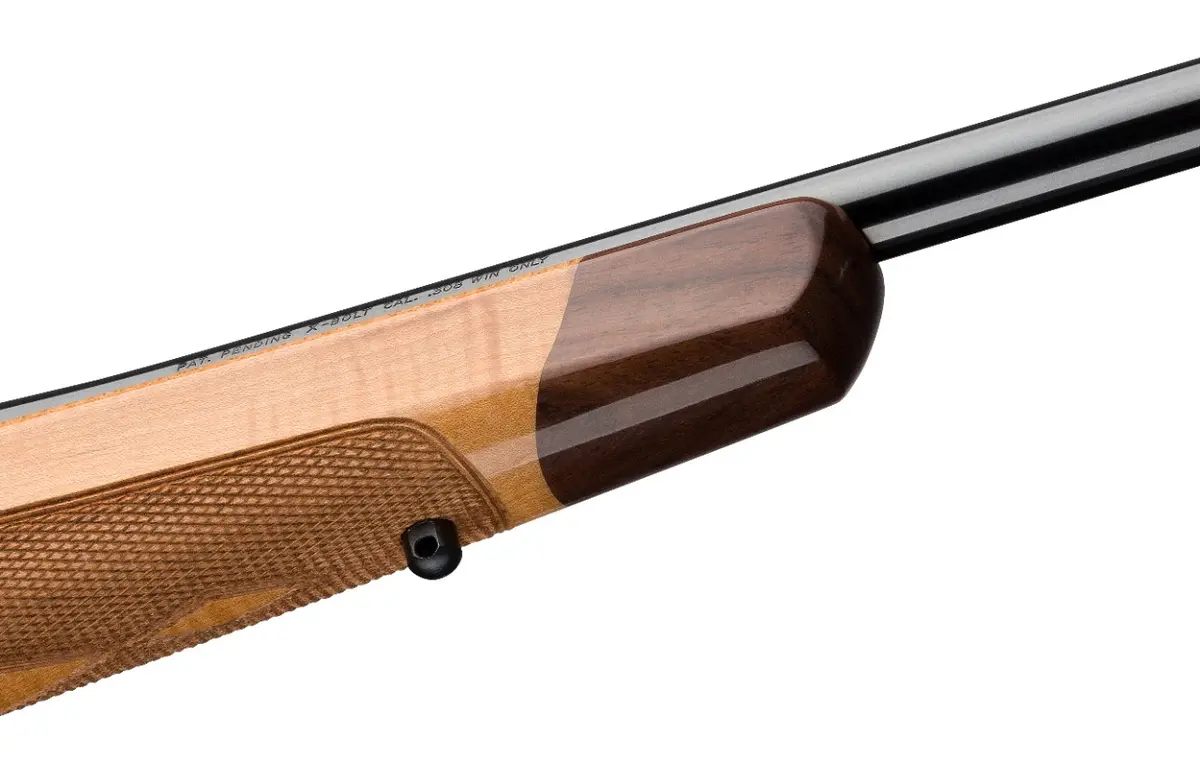

High gloss finish AAA maple stock with rosewood fore-end and grip caps

X-Bolt Features

Free-floated barrel that is bedded in the front and the rear of the action for stability and to help maintain barrel-to-stock spacing for consistent accuracy.
Bolt unlock button works in conjunction with the top-tang safety to provide an added measure of safety during checking and unloading of the chamber.
Short 60° bolt lift is fast cycling and allows you to work the bolt quickly
Detachable rotary magazine
Three-lever Feather Trigger
X-Lock scope mount features a four screw per base
Inflex Recoil Pad

Specifications

Item Number 035448211	UPC 023614734741
Action Length Short Action	Caliber 243 Win
Barrel Length 22"	Overall Length 42"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 8 oz
Magazine Capacity 4	Twist Rate 10"
Barrel Finish Polished Blued	Stock Finish Gloss
Wood Grade AAA	Receiver Finish Polished Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1, Small	Pistol Grip Cap Rosewood
Checkering Cut 18 LPI	Sling Swivel Studs Gloss Blued
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish High Gloss	Magazine Type Detachable
Muzzle Threading M13 - 1.25	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,179.99

Item Number 035448282	UPC 023614734758
Action Length Short Action	Caliber 6.5 CREEDMOOR
Barrel Length 22"	Overall Length 42"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 8 oz
Magazine Capacity 4	Twist Rate 8"
Barrel Finish Polished Blued	Stock Finish Gloss
Wood Grade AAA	Receiver Finish Polished Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1, Small	Pistol Grip Cap Rosewood
Checkering Cut 18 LPI	Sling Swivel Studs Gloss Blued
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish High Gloss	Magazine Type Detachable
Muzzle Threading M13 - 0.75	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,279.99

Item Number 035448218	UPC 023614734765
Action Length Short Action	Caliber 308 Win
Barrel Length 22"	Overall Length 42"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 8 oz
Magazine Capacity 4	Twist Rate 12"
Barrel Finish Polished Blued	Stock Finish Gloss
Wood Grade AAA	Receiver Finish Polished Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1, Small	Pistol Grip Cap Rosewood
Checkering Cut 18 LPI	Sling Swivel Studs Gloss Blued
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish High Gloss	Magazine Type Detachable
Muzzle Threading M13 - 0.75	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,279.99

Item Number 035448246	UPC 023614735038
Action Length Short Action	Caliber 300 WSM
Barrel Length 23"	Overall Length 43"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 11 oz
Magazine Capacity 3	Twist Rate 10"
Barrel Finish Polished Blued	Stock Finish Gloss
Wood Grade AAA	Receiver Finish Polished Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1, Small	Pistol Grip Cap Rosewood
Checkering Cut 18 LPI	Sling Swivel Studs Gloss Blued
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish High Gloss	Magazine Type Detachable
Muzzle Threading M13 - 0.75	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,199.99

Item Number 035448224	UPC 023614734772
Action Length Short Action	Caliber 270 Win
Barrel Length 22"	Overall Length 42 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 12 oz
Magazine Capacity 4	Twist Rate 10"
Barrel Finish Polished Blued	Stock Finish Gloss
Wood Grade AAA	Receiver Finish Polished Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1, Small	Pistol Grip Cap Rosewood
Checkering Cut 18 LPI	Sling Swivel Studs Gloss Blued
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish High Gloss	Magazine Type Detachable
Muzzle Threading M13 - 0.75	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,279.99

Item Number 035448226	UPC 023614734789
Action Length Long Action	Caliber 30-06 SPRG
Barrel Length 22"	Overall Length 42 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 12 oz
Magazine Capacity 4	Twist Rate 10"
Barrel Finish Polished Blued	Stock Finish Gloss
Wood Grade AAA	Receiver Finish Polished Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1, Small	Pistol Grip Cap Rosewood
Checkering Cut 18 LPI	Sling Swivel Studs Gloss Blued
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish High Gloss	Magazine Type Detachable
Muzzle Threading M13 - 0.75	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,279.99

Item Number 035448227	UPC 023614734796
Action Length Long Action	Caliber 7MM REM MAG
Barrel Length 26"	Overall Length 46 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 7 lbs 0 oz
Magazine Capacity 3	Twist Rate 9 1/2"
Barrel Finish Polished Blued	Stock Finish Gloss
Wood Grade AAA	Receiver Finish Polished Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1, Small	Pistol Grip Cap Rosewood
Checkering Cut 18 LPI	Sling Swivel Studs Gloss Blued
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish High Gloss	Magazine Type Detachable
Muzzle Threading M13 - 1.25	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,199.99

Item Number 035448229	UPC 023614734802
Action Length Long Action	Caliber 300 WIN MAG
Barrel Length 26"	Overall Length 46 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 7 lbs 0 oz
Magazine Capacity 3	Twist Rate 10"
Barrel Finish Polished Blued	Stock Finish Gloss
Wood Grade AAA	Receiver Finish Polished Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1, Small	Pistol Grip Cap Rosewood
Checkering Cut 18 LPI	Sling Swivel Studs Gloss Blued
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish High Gloss	Magazine Type Detachable
Muzzle Threading M13 - 0.75	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,299.99
