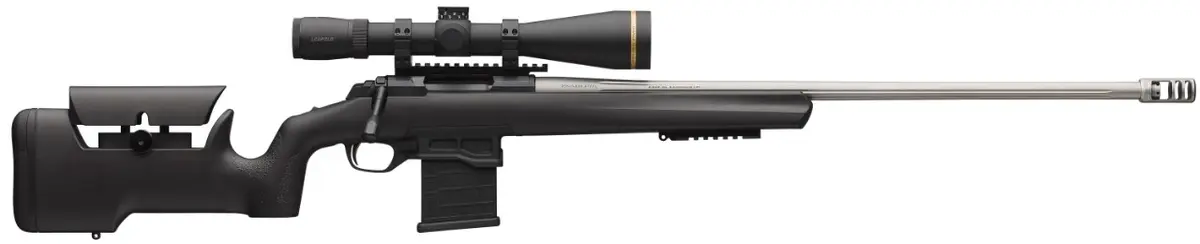

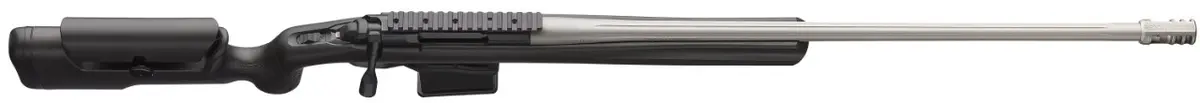

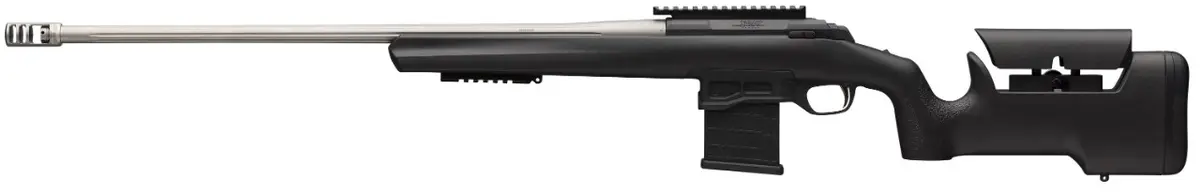

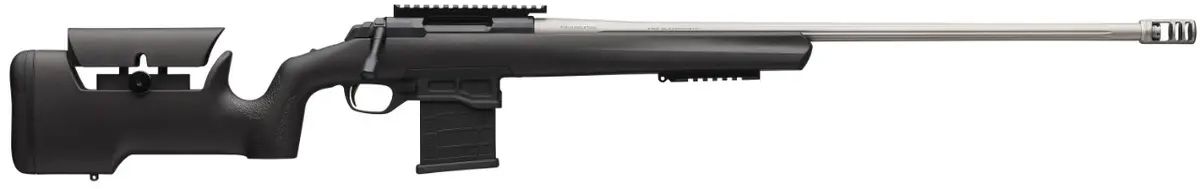

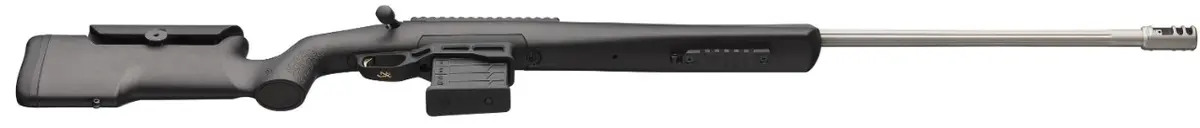

X-Bolt Target Lite Max

Overview

With long-range rifle competitions popping up across the country, shooters are putting their equipment through the paces like never before and enjoying the satisfaction when a rifle, optics, ammunition and personal performance come together. One of the biggest competitions is the National Rifle League Production Class. Here, shooters are limited in weight and the modifications they can make to their rifle. Thus, the out of the box features and accuracy of their rifle are paramount. Fortunately for competitors, winning is a specialty of Browning and we’ve developed the new X-Bolt Target Lite MAX.

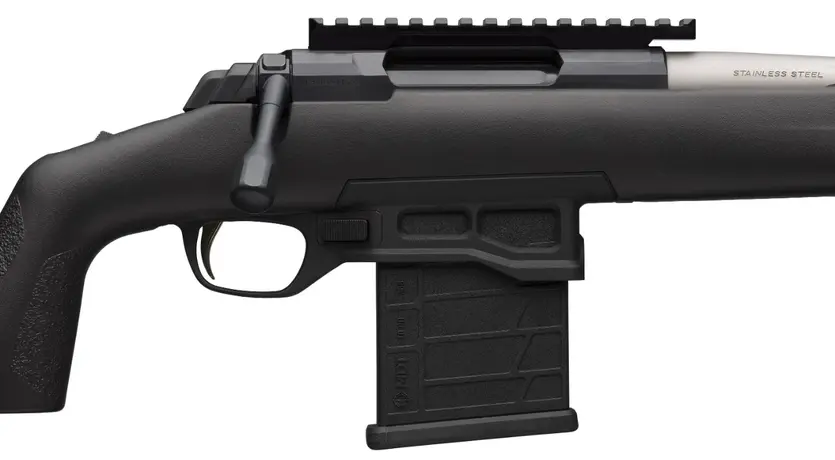

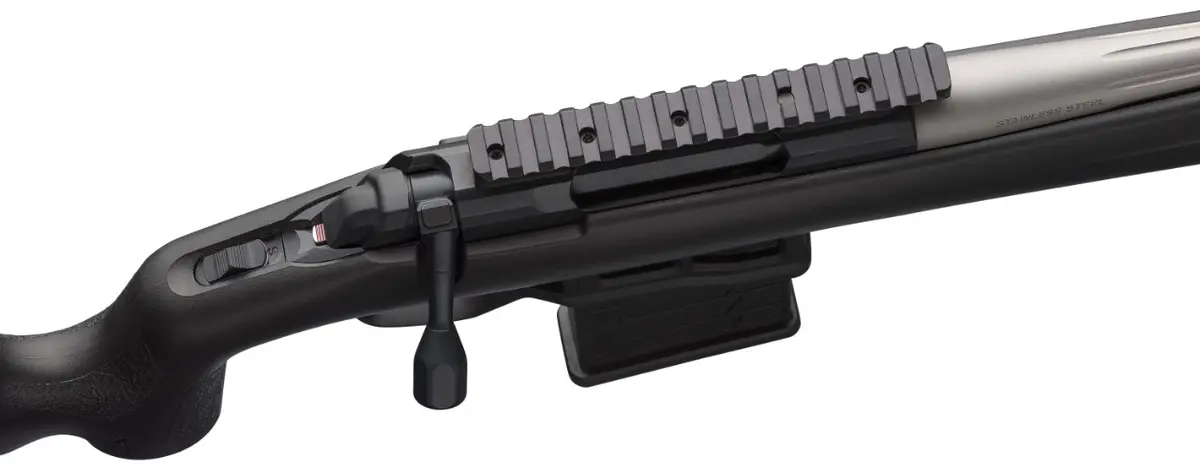

The foundation of this rifle is a stiffer, heavier, full-diameter receiver that helps stabilize the rifle. An alignment flat is machined into the receiver to aid in scope alignment/leveling. The recoil lug is pinned to the receiver to ensure perfect orientation if the barrel needs to be replaced. The included 20 MOA Picatinny optics rail is held in place with four oversize 8-40 screws and an additional steel pin that secures the rail to the receiver. The bolt features a longer handle to reduce opening force.

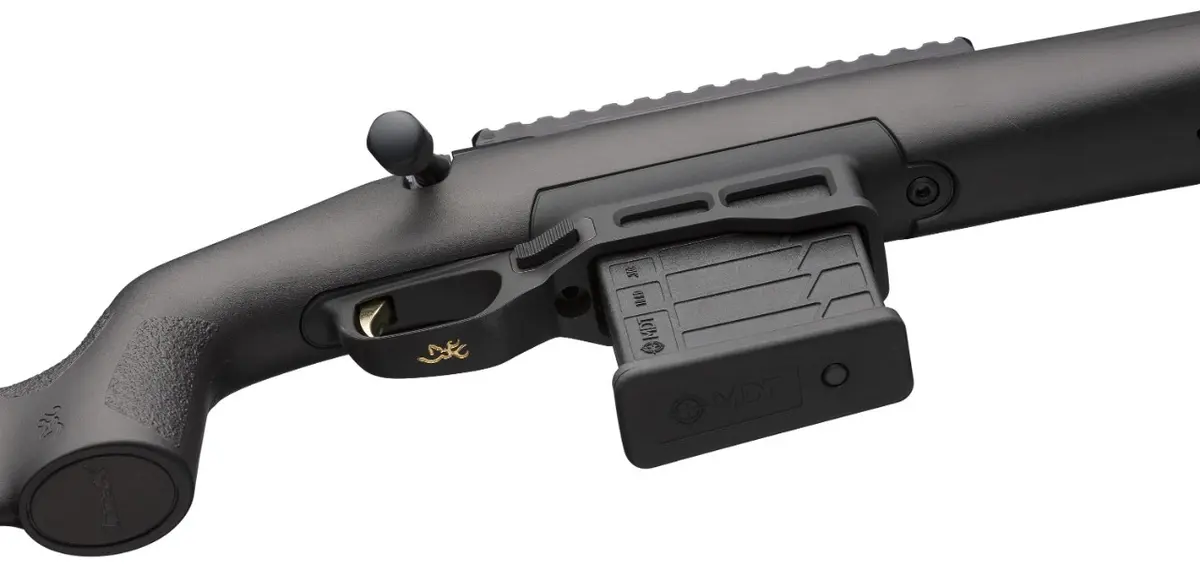

X-Bolt Target rifles feature the Xtra Capacity Magazine System that utilizes popular Accuracy International Chassis System (AICS) pattern magazines. These magazines are available in 5- and 10-round capacity. X-Bolt Target rifles ship with one MDT 10-round polymer box magazine. (For optimal feeding reliability we recommend MDT 10-round and Magpul® 5-round magazines.) The front of the magazine well is sturdy enough to be used as a barrier stop.

The patent-pending Browning Target DLX Trigger brings the light touch you need for accurate shooting. This three-lever design has zero creep, zero take-up, zero overtravel and a glass-like break. The Target DLX is adjustable with a range of 2 to 3.3 pounds and comes factory set at 2.5 lbs.

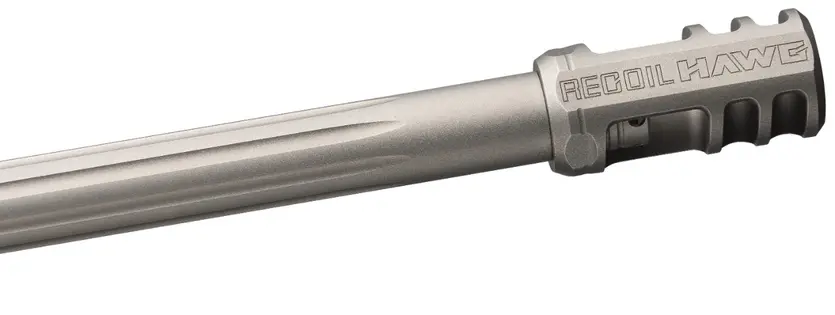

To help make the 12-pound weight in NRL Production Class (rifle, optics and mounts), this rifle is fitted with a stainless heavy sporter profile barrel is that fluted to reduce weight and increase surface area for faster heat dissipation. The barrel is suppressor ready with 5/8"-24 SR threads and includes a Recoil Hawg muzzle brake that effectively reduces felt recoil for improved shooting comfort – a must in competition.

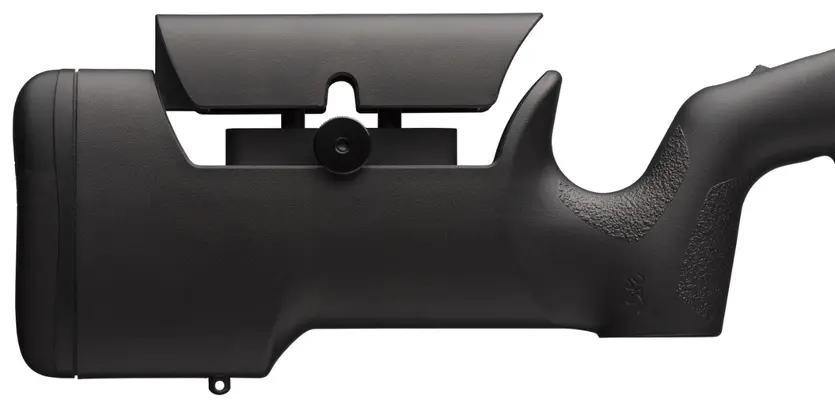

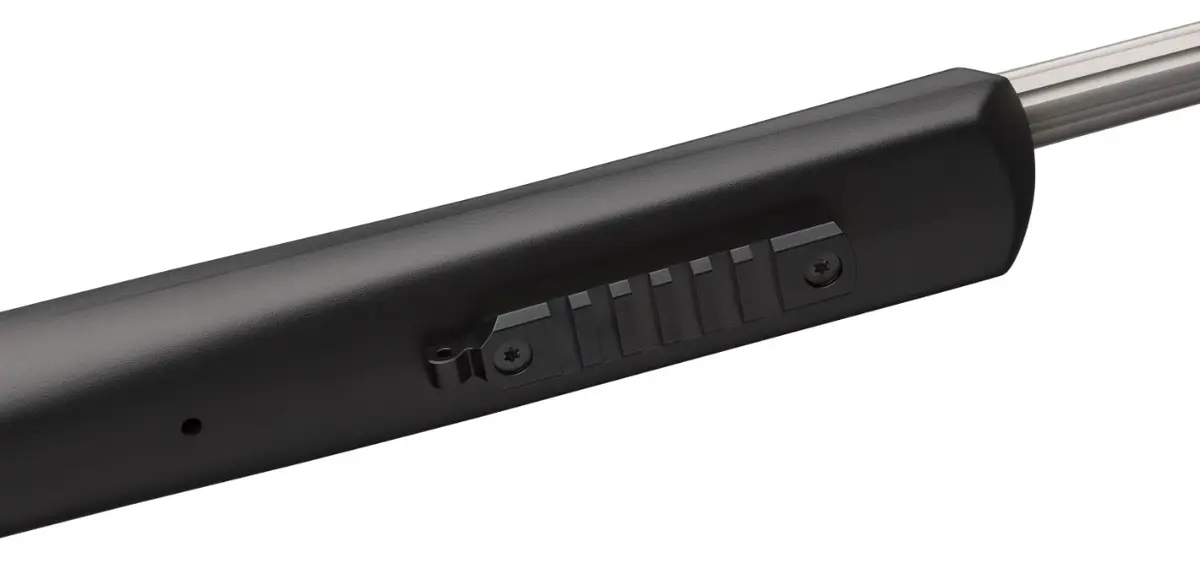

The adjustable MAX stock gives you the versatility to customize the fit the rifle to your unique needs. The comb is height adjustable to put your eye in perfect alignment with your scope. Length of pull spacers are also included. The vertical grip is comfortable standing, seated and prone and allows for an easy reach from the finger to the trigger. A Picatinny rail on the bottom of the forearm is included and makes attaching today's precision, rail-mounted bipods a snap. The rail is also easily removable and three secure mounting points make it easy to mount the popular ARCA/Swiss rail (not included).

NOTE: Unless specifically listed as included with a firearm, accessories shown such as scopes, optical sights, rings, ring mounts, optic rails, bipod rails, ammunition, etc. are NOT included. Accessories are available at authorized Browning dealers and here on Browning.com.

X-Bolt Target Lite Max Features

Stiffer, heavier, full-diameter receiver
Target DLX Trigger has an adjustment range of 2 to 3.3 pounds and comes factory set at 2.5 pounds
Xtra Capacity Magazine System includes one MDT 10-round polymer box magazine
Stainless steel, fluted heavy sporter barrel for long-range accuracy
Recoil Hawg muzzle brake reduces recoil up to 76%
Max composite stock with vertical grip and height-adjustable comb
20 MOA Picatinny optics rail secured to the receiver with four oversize 8-40 screws and a steel pin
Extended bolt handle reduces opening forces
Should the barrel need to be replaced, the recoil lug is pinned to the receiver to ensure perfect orientation
Free-floated barrel that is bedded in the front and the rear of the action for stability and to help maintain barrel-to-stock spacing for consistent accuracy.
Bolt unlock button works in conjunction with the top-tang safety to provide an added measure of safety during checking and unloading of the chamber.
Short 60° bolt lift is fast cycling and allows you to work the bolt quickly
Inflex Recoil Pad

Specifications

Item Number 035567291	UPC 023614855798
Action Length Short Action	Caliber 6 CREEDMOOR
Barrel Length 26"	Overall Length 46 3.25/25"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 9 lbs 2 oz
Magazine Capacity 10	Twist Rate 7 1/2"
Barrel Finish Satin Gray	Stock Finish Matte
Receiver Finish Matte Blued	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs 2, Picatinny Rail	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish Matte Black Cerakote
Magazine Type Extra Capacity	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,779.99

Item Number 035567292	UPC 023614856795
Action Length Short Action	Caliber 6MM GT
Barrel Length 26"	Overall Length 46 3.25/25"
Length of Pull 13 3/4"	Drop at Comb Adj Adj
Drop at Heel Adj Adj	Weight 9 lbs 0 oz
Magazine Capacity 10	Twist Rate 7 1/2"
Barrel Finish Satin Gray	Stock Finish Matte
Receiver Finish Matte Blued	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Checkering Textured Grip Panels	Sling Swivel Studs 2, Picatinny Rail
Receiver Material Steel	Trigger Finish Gold Plated
Bolt Slide Finish Matte Black Cerakote	Magazine Type Extra Capacity
Muzzle Threading 5/8 - 24 SR	Trigger Material Alloy
Trigger Guard Material Alloy	Trigger Guard Engraving Buck Mark in Gold
Floor Plate Material Composite	Drilled and Tapped for Scope Yes
MSRP $1,779.99

Item Number 035567282	UPC 023614855804
Action Length Short Action	Caliber 6.5 CREEDMOOR
Barrel Length 26"	Overall Length 46 3.25/25"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 9 lbs 2 oz
Magazine Capacity 10	Twist Rate 7"
Barrel Finish Satin Gray	Stock Finish Matte
Receiver Finish Matte Blued	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs 2, Picatinny Rail	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish Matte Black Cerakote
Magazine Type Extra Capacity	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,779.99

Item Number 035567218	UPC 023614855811
Action Length Short Action	Caliber 308 Win
Barrel Length 26"	Overall Length 46 3.25/25"
Length of Pull 13 3/4"	Drop at Comb 2/3" Adj
Drop at Heel 2/3" Adj	Weight 9 lbs 2 oz
Magazine Capacity 10	Twist Rate 10"
Barrel Finish Satin Gray	Stock Finish Matte
Receiver Finish Matte Blued	Chamber Finish Polished
Barrel Material Stainless	Barrel Contour Heavy Sporter
Stock Material Composite	Recoil Pad Inflex 2, Large
Pistol Grip Cap None	Checkering Textured Grip Panels
Sling Swivel Studs 2, Picatinny Rail	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish Matte Black Cerakote
Magazine Type Extra Capacity	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,779.99
