The Browning X-Bolt – Proven Bolt-Action Rifle Accuracy Straight from the Box.

The Browning X-Bolt – Proven Bolt-Action Rifle Accuracy Straight from the Box.

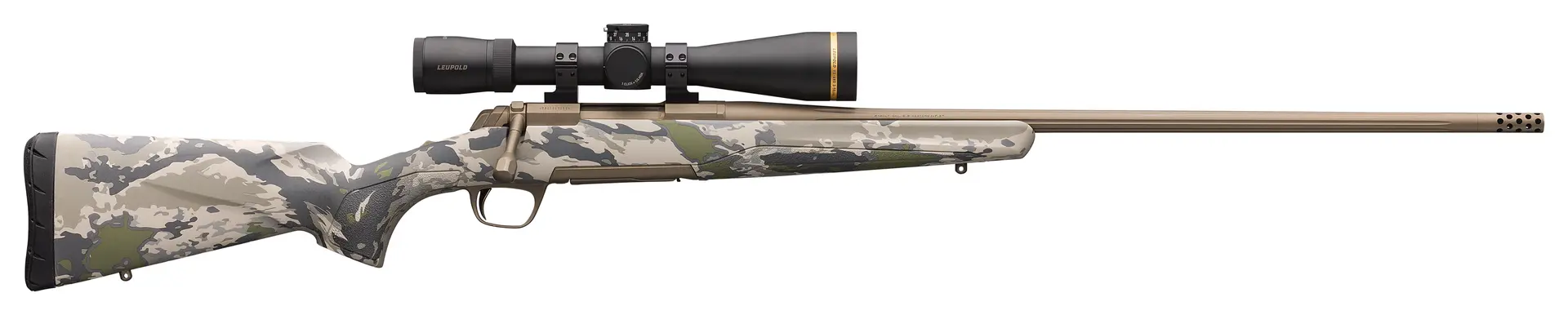

XBolt Speed Rifle
XBolt Speed Rifle

With its introduction, the Browning X-Bolt set a new standard in the development of bolt-action rifles. It was the first that was designed from the start with one goal: Total Accuracy. From the design of the recoil pad to the adjustable trigger to the construction of the barrel, nearly every feature contributes to aiding the rifle, and you, shoot more accurately.

Of course, the X-Bolt is about more than just accuracy. The trim lines translate into less weight for easier carrying and a natural ease when bringing it to your shoulder. The tasteful styling also still looks as fresh as tomorrow.

From eastern woods to windswept tundra to rocky peaks towering above tree line, the X-Bolt delivers the performance you expect from a firearm with the Browning name.

See the X-Bolt in Action.

Features of the X-Bolt.

x-bolt-receiver
x-bolt-receiver

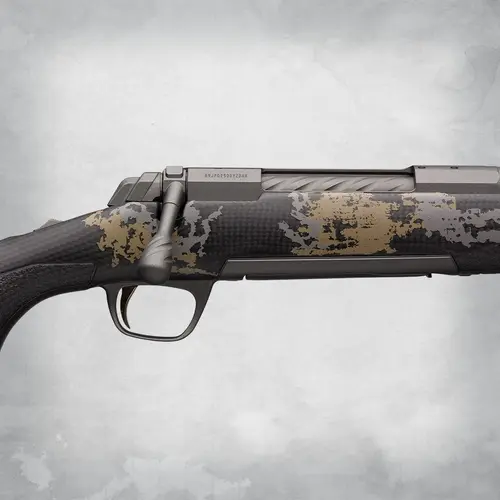

RECEIVER

The design of the steel receiver reduces weight without sacrificing an ounce of strength.

X-Bolt-Trigger
X-Bolt-Trigger

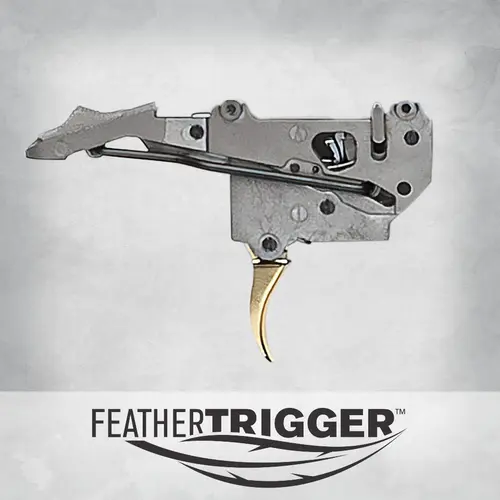

FEATHER TRIGGER

The three-lever Feather Trigger provides a clean, crisp pull with no take-up or creep, minimal overtravel and is adjustable from 3 to 5 lbs. (Factory pre-set at approximately 3-1/2 to 4 lbs.) The alloy trigger housing contains hard chromed steel components that are highly polished on all critical contact surfaces.

x-bolt-free-floating-barrel
x-bolt-free-floating-barrel

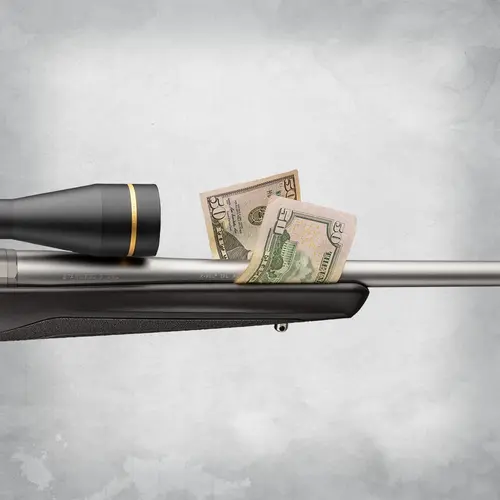

FREE-FLOATING BARREL

Every X-Bolt action is bedded into the stock at the front and rear action screws and recoil lug for a true free-floating barrel.

Barrels are button rifled and triple checked for interior finish, straightness and air-gauged for uniformity. Every chamber is hand-reamed for precision accuracy and a recessed muzzle crown helps protect the rifling from damage.

Select X-Bolt models incorporate faster rates of twist to better stabilize longer, heavier bullets.

x-lock-mounting-system
x-lock-mounting-system

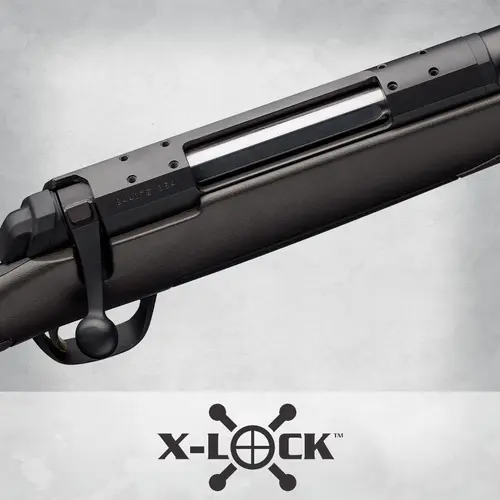

X-LOCK SCOPE MOUNTING SYSTEM

X-Lock mounts feature a four screws-per-base design that replaces the traditional two screw system to offer more accurate placement and more secure attachment to the receiver.

x-bolt-rotary-magazine
x-bolt-rotary-magazine

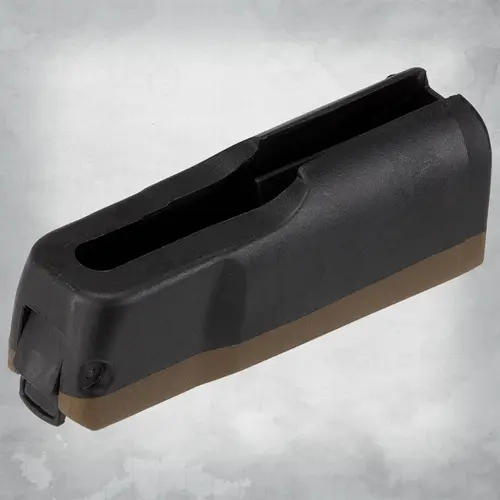

ROTARY MAGAZINE

The rotary magazine is removeable, durable, easy to load and feeds rounds straight to the chamber from the center line, not off to the side like other rifles. This unique design holds U.S. patent numbers: 8,156,675; 8,484,875 and 8,745,912.

x-bolt-bolt-unlock-button
x-bolt-bolt-unlock-button

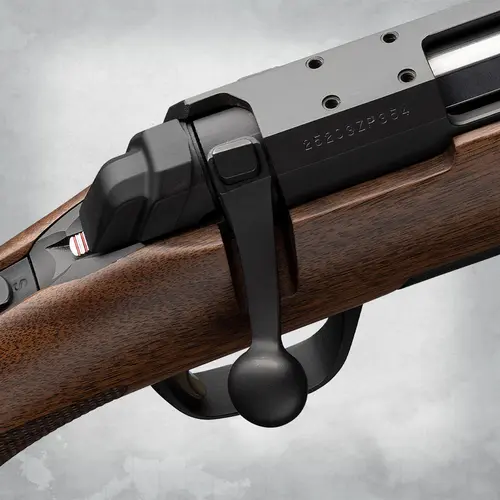

BOLT UNLOCK BUTTON

The bolt unlock button allows the bolt to be operated with the safety in the on safe position, providing an extra margin of safety when checking and unloading the chamber.

top-tang-safety
top-tang-safety

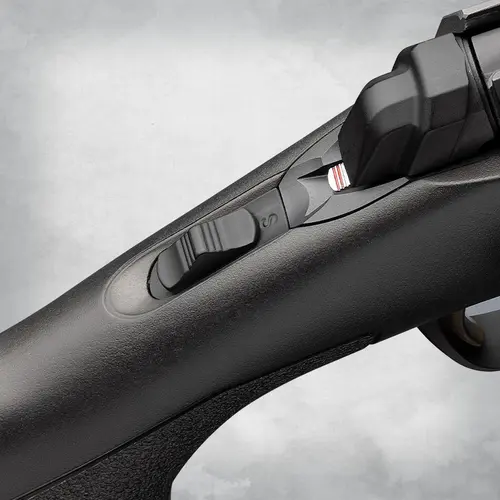

TOP-TANG SAFETY

The top-tang safety is easy to operate with the thumb. It blocks the trigger sear and features a firing pin block for added security.

inflex-x-bolt
inflex-x-bolt

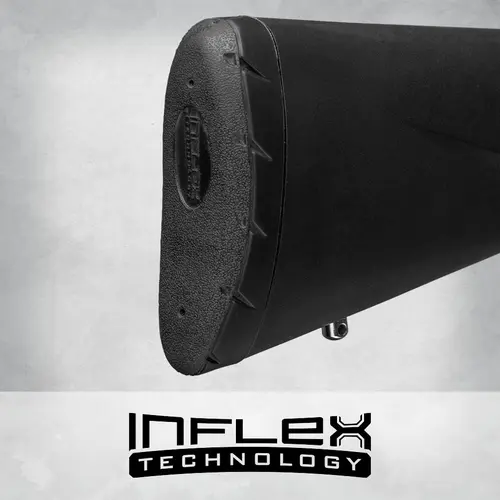

INFLEX RECOIL PAD

The Inflex recoil pad features internal directional ribs that move the comb down and away from the cheek to increase shooting comfort.

60 degree x-bolt
60 degree x-bolt

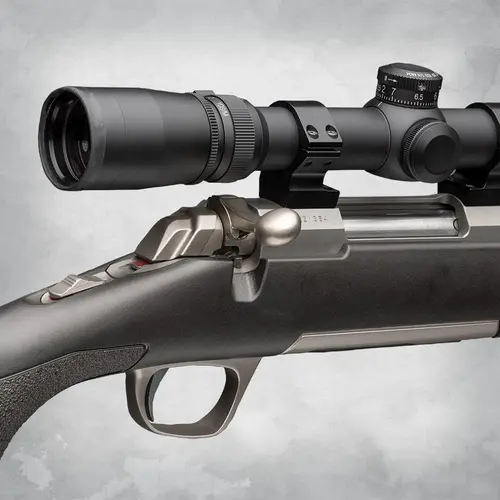

60° BOLT LIFT

Short 60˚ bolt lift is fast cycling and allows the hand to easily clear scopes. The bolt body is machined from solid steel bar stock for strength and custom rifle precision and has three locking lugs providing exceptional bolt strength.

x-bolt-stock-variety
x-bolt-stock-variety

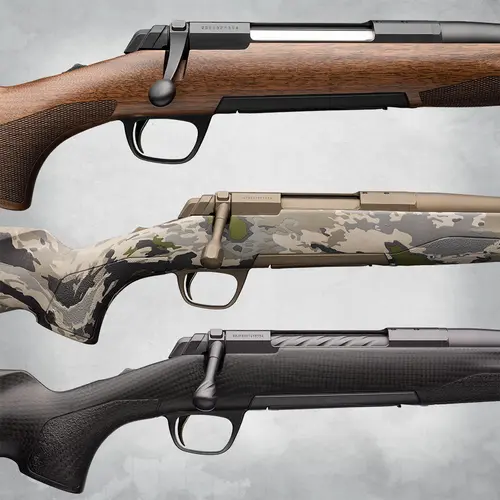

SELECT YOUR STOCK

From wood to composite to carbon fiber, X-Bolt rifles are available with a stock design that meets your needs.

recoil-hawg-x-bolt-muzzle-break
recoil-hawg-x-bolt-muzzle-break

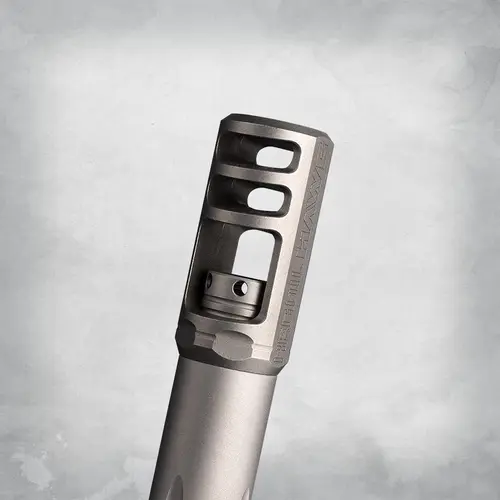

MUZZLE BRAKE

Many X-Bolt rifles feature a removeable muzzle brake. Recoil Hawg muzzle brakes are engineered to reduce felt recoil by as much as 76%, depending on the caliber.

 Radial-style muzzle brakes on some X-Bolt rifles also reduce felt recoil and can be easily upgraded to a Recoil Hawg. A thread protector is included with most hunting model rifles.

X-bolt-adjustable-comb
X-bolt-adjustable-comb

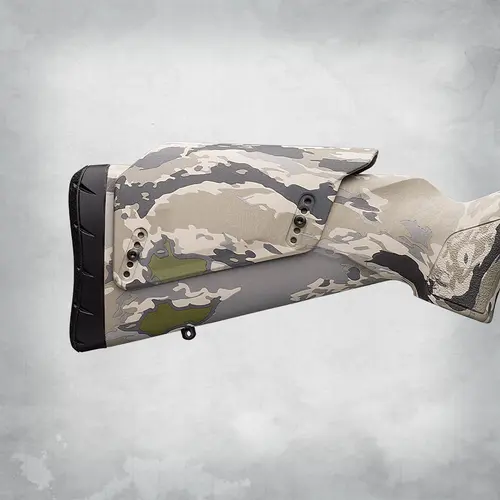

ADJUSTABLE COMB

Certain models feature an adjustable comb system that offers up to 1" of height adjustment to place the shooter’s eye in alignment with large diameter optics.

persona-engraving-x-bolt
persona-engraving-x-bolt

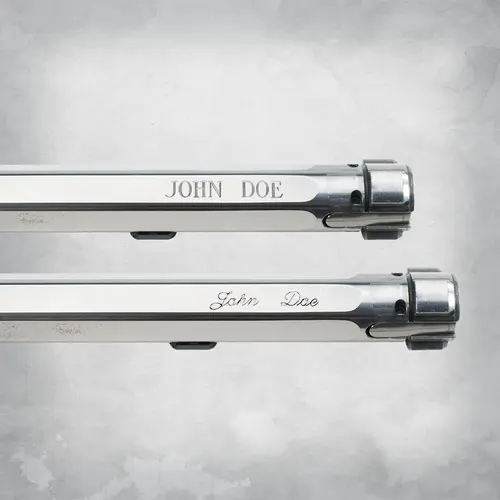

PERSONALIZED ENGRAVING

The bolt can be personalized with the owner’s name (except Pro models). Call (800) 333-3288 for more information.

Features of the X-Bolt Target.

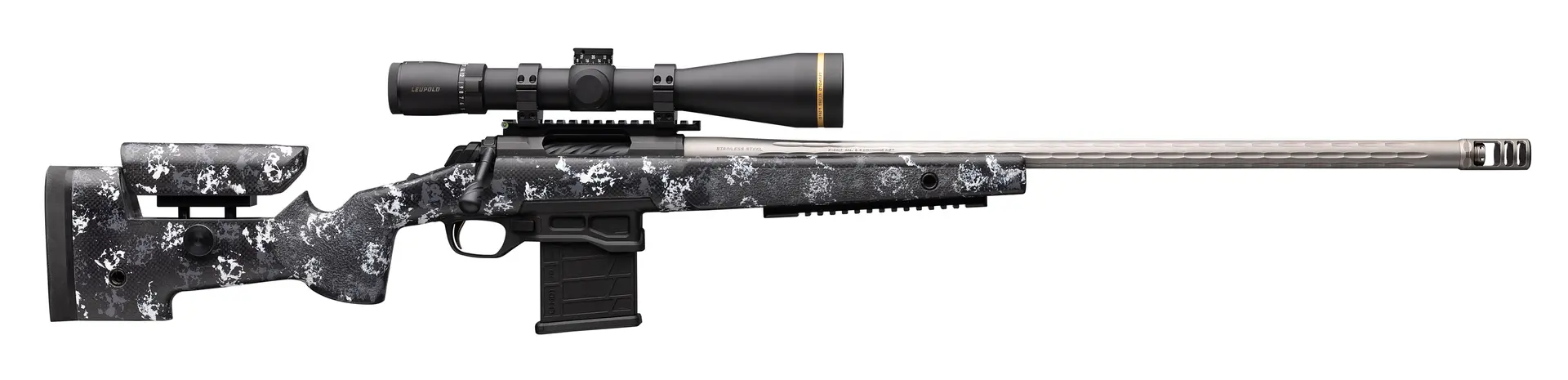

X-Bolt Target McMillan Rifle
X-Bolt Target McMillan Rifle

X-Bolt Target models have been specially designed for performance from the bench and in the rapidly growing long-range shooting competition scene. Target models have several differences from the other X-Bolt rifles, all designed to help you shoot your best when the competition heats up. Many of the features of these tack-driving rifles meet the specific guidelines of National Rifle League and Precision Rifle Series classifications, meaning they are ready to compete straight from the box.

x-bolt-target-receiver
x-bolt-target-receiver

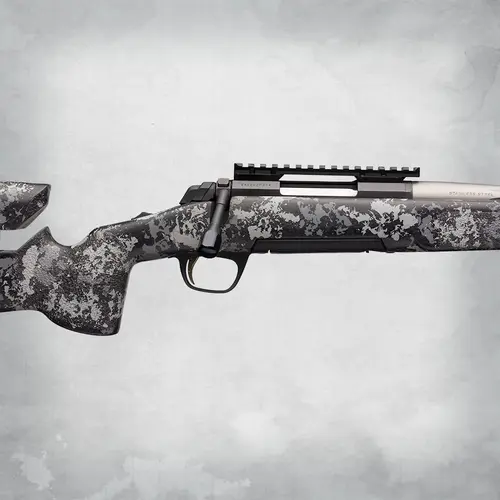

FULL-DIAMETER RECEIVER

In the long-range rifle world, more weight means added stability for better, more consistent accuracy. X-Bolt Target models feature a full-diameter receiver that is both stiffer and heavier to keep you on target at extended ranges.

X-Bolt-Trigger-dlx
X-Bolt-Trigger-dlx

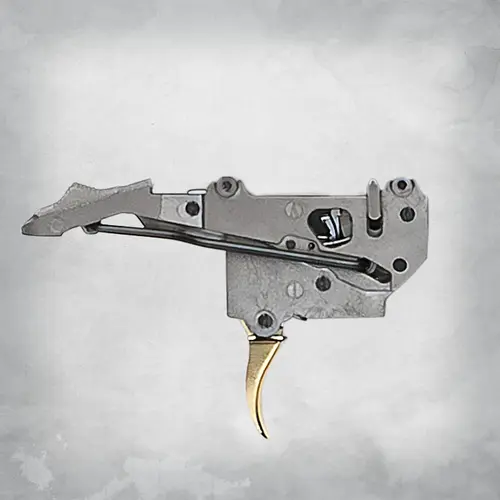

TARGET DLX TRIGGER

An excellent trigger is an absolute must have in a precision rifle. The Target DLX Trigger is designed to optimize downrange performance with zero creep, zero take up, and zero over travel. Pull weight is adjustable from 2-3.3 lb. and preset at 2.5 lb.

x-bolt-extra-capacity-magazine
x-bolt-extra-capacity-magazine

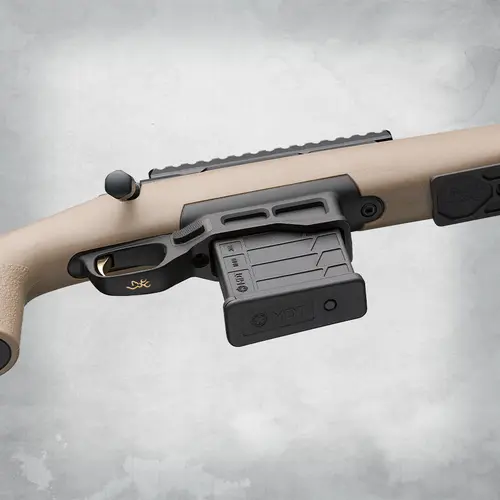

XTRA CAPACITY MAGAZINE SYSTEM

Timed competition stages leave little time for reloading. That's why X-Bolt target rifles feed from a 10-round, box-style, MDT magazine. (One magazine included.)

x-bolt-picatinny-optics-rail
x-bolt-picatinny-optics-rail

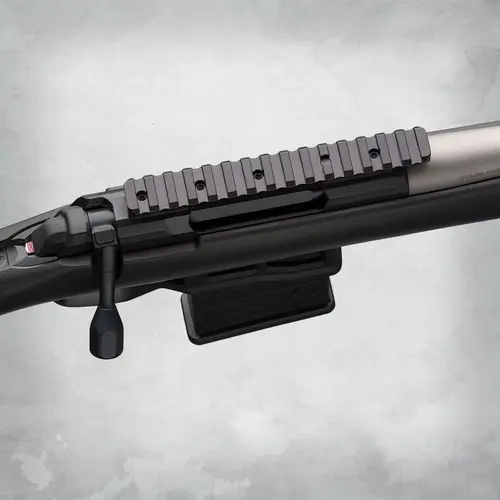

PICATINNY OPTICS RAIL

The included 20 MOA Picatinny optics rail is secured to the receiver with four 8-40 screws and further reinforced with a steel pin.

arca/ swiss ready
arca/ swiss ready

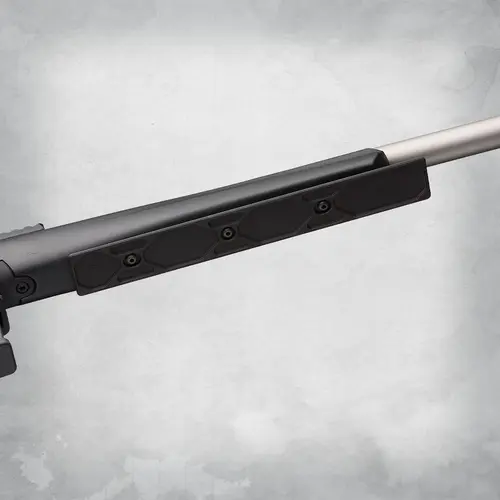

ARCA/SWISS RAIL READY

With its easy adjustability and stability, the ARCA/Swiss rail has become the standard in rifle competition. If not already included, most X-Bolt Target rifles are designed to easily add an ARCA-Swiss rail and stay within the guidelines of the match.
