X-Bolt 2 Medallion Maple

Overview

The Browning X-Bolt has a reputation for producing accurate, reliable rifles that hunters can depend on. With a number of enhancements, the X-Bolt 2 Medallion Maple shoulders that legacy with immense style.

The X-Bolt 2 Medallion Maple was developed for the hunter that prefers the tradition of a wood stock and appreciates the improvements that technology provides. The standout feature is the beautiful AAAA maple stock with gloss finish and rosewood caps at the fore-end tip and grip cap. Touches like a rounded fore-end tip and point-style checkering retain the classic look, but like other X-Bolt models, this stock has a trim, nimble feel that is fast to the shoulder.

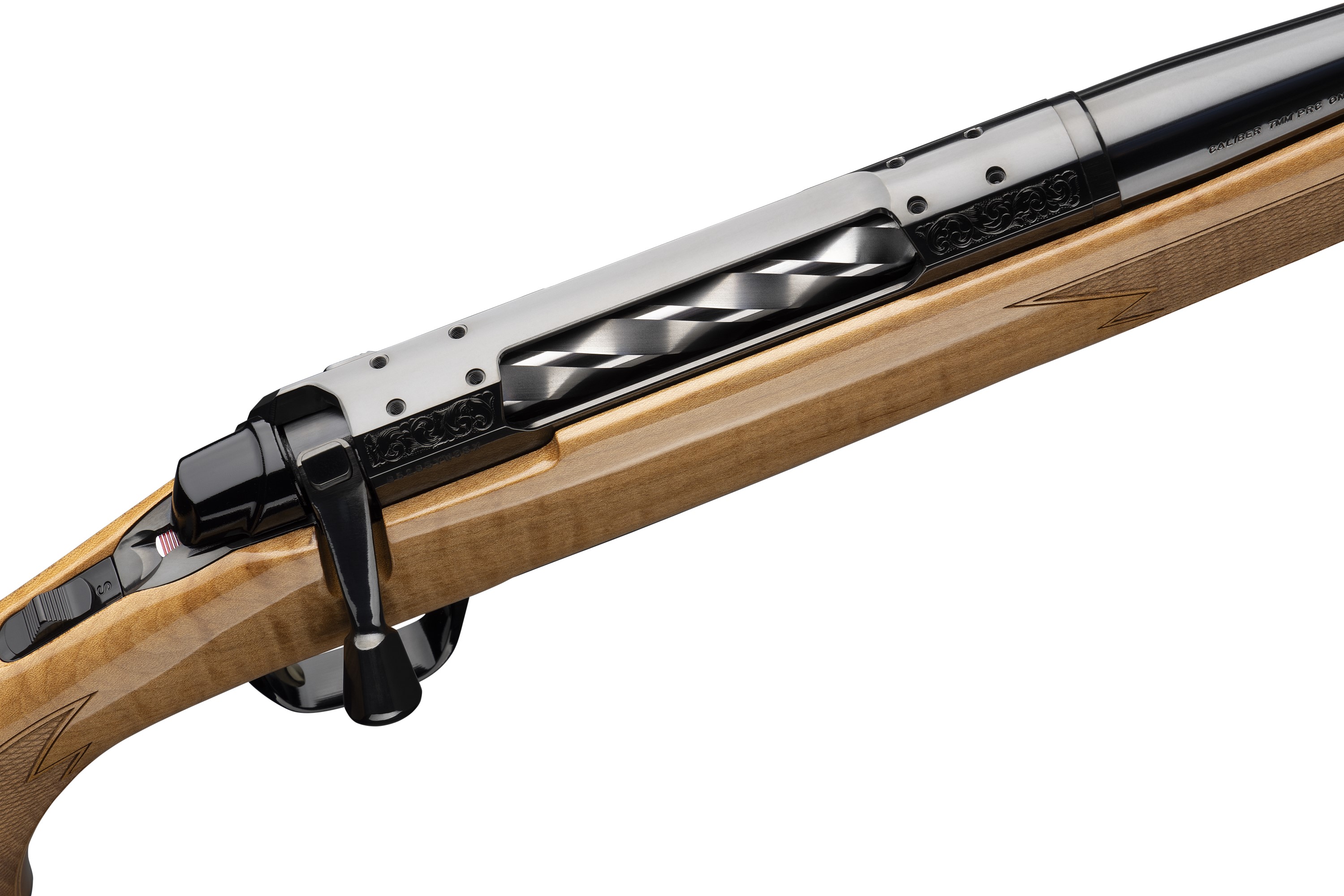

Gloss blued finish on the engraved receiver, barrel, and bottom metal accentuates the stock and raises the bar of elegance. The spiral fluted bolt reduces weight and adds visual interest.

Focusing on performance, X-Bolt 2 Medallion Maple is an ideal blend of tradition and design that will satisfy the accuracy needs of shooters. A sporter contour barrel that keeps the rifle light, maneuverable, and easy to carry. The action is bedded, and the barrel is free floated for consistent accuracy. A removable, radial style muzzle brake reduces felt recoil and retains the lines of the rifle. A thread protector is included.

The action has been redesigned with additional bolt guidance surface for smoother cycling. The bolt has also been reworked and is fitted with an improved handle and bolt knob.

The DLX Trigger is a three-lever design that offers zero creep, zero take-up, and zero overtravel performance and comes preset from the factory at 3.5 pounds. (Adjustable down to 3.0 pounds.)

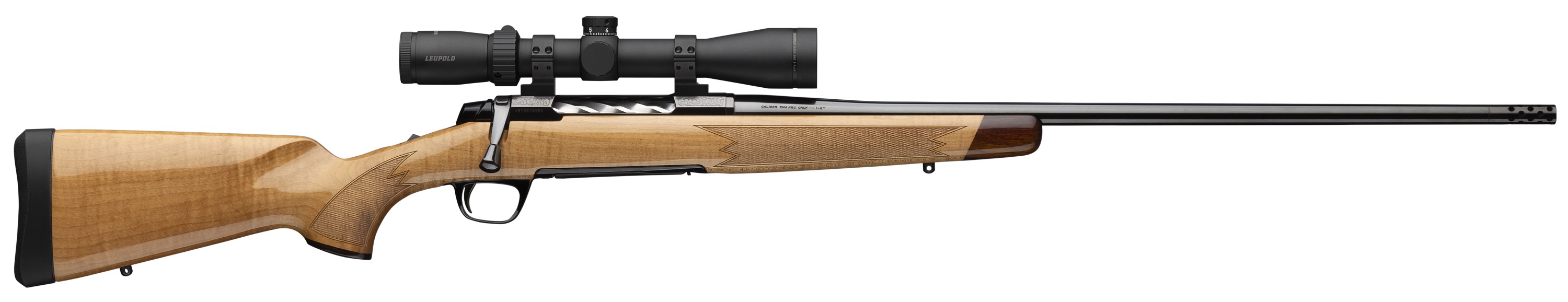

NOTE: Unless specifically listed as included with a firearm, accessories shown such as scopes, optical sights, rings, ring mounts, optic rails, bipod rails, ammunition, etc. are NOT included. Accessories are available at authorized Browning dealers and here on Browning.com.

X-Bolt 2 Medallion Maple Features

Engraved receiver with polished blued finish
Gloss finished AAAA checkered maple stock with rosewood fore-end tip and grip cap
Sporter contour barrel with gloss blued finish for the ideal blend of accuracy and weight savings
Gloss finished metal work
Spiral-fluted bolt with ergonomic bolt knob shape
Low-profile bottom metal
Threaded muzzle brake reduces felt recoil (thread protector included)
Rotary magazine
1-1/4" Inflex recoil pad

X-Bolt 2 Features

Receiver features additional bolt guidance surface area for smoother operation
Patent-pending adjustable DLX Trigger set to hunting weights
The action is bedded at the recoil lug and action screws for stability and to free-float the barrel
Bolt Unlock Button works in conjunction with the top-tang safety to provide an added measure of safety during checking and unloading of the chamber
Easy to reach top-tang safety
Short 60° bolt lift is fast cycling and clears large optics
X-Lock Scope Mounting System uses four screws per base for rock-solid attachment to the receiver

Specifications

Item Number 036080211	UPC 023614864509
Action Length Short Action	Caliber 243 Win
Barrel Length 22"	Overall Length 42"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 10 oz
Magazine Capacity 4	Twist Rate 10"
Barrel Finish High Gloss	Stock Finish Satin
Wood Grade Grade III/IV	Receiver Finish Gloss Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Gloss Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading M13 - 0.75
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,949.99

Item Number 036080282	UPC 023614864516
Action Length Short Action	Caliber 6.5 CREEDMOOR
Barrel Length 22"	Overall Length 42"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 10 oz
Magazine Capacity 4	Twist Rate 8"
Barrel Finish High Gloss	Stock Finish Satin
Wood Grade AAAA	Receiver Finish Gloss Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Gloss Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading M13 - 0.75
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,949.99

Item Number 036080218	UPC 023614864523
Action Length Short Action	Caliber 308 Win
Barrel Length 22"	Overall Length 42"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 10 oz
Magazine Capacity 4	Twist Rate 10"
Barrel Finish High Gloss	Stock Finish Satin
Wood Grade AAAA	Receiver Finish Gloss Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Gloss Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading M13 - 0.75
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,949.99

Item Number 036080294	UPC 023614864530
Action Length Short Action	Caliber 6.5 PRC
Barrel Length 24"	Overall Length 44"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 7 lbs 0 oz
Magazine Capacity 3	Twist Rate 7"
Barrel Finish High Gloss	Stock Finish Satin
Wood Grade AAAA	Receiver Finish Gloss Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Gloss Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading M13 - 0.75
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,989.99

Item Number 036080299	UPC 023614864547
Action Length Short Action	Caliber 6.8 Western
Barrel Length 24"	Overall Length 44"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 7 lbs 0 oz
Magazine Capacity 3	Twist Rate 7 1/2"
Barrel Finish High Gloss	Stock Finish Satin
Wood Grade AAAA	Receiver Finish Gloss Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Gloss Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading M13 - 0.75
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,989.99

Item Number 036080224	UPC 023614864554
Action Length Long Action	Caliber 270 Win
Barrel Length 22"	Overall Length 42 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 14 oz
Magazine Capacity 4	Twist Rate 10"
Barrel Finish High Gloss	Stock Finish Satin
Wood Grade AAAA	Receiver Finish Gloss Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Gloss Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading M13 - 0.75
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,949.99

Item Number 036080226	UPC 023614864561
Action Length Long Action	Caliber 30-06 SPRG
Barrel Length 22"	Overall Length 42 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 14 oz
Magazine Capacity 4	Twist Rate 10"
Barrel Finish High Gloss	Stock Finish Satin
Wood Grade AAAA	Receiver Finish Gloss Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Gloss Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading M13 - 0.75
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,949.99

Item Number 036080227	UPC 023614864578
Action Length Long Action	Caliber 7MM REM MAG
Barrel Length 26"	Overall Length 46 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 7 lbs 2 oz
Magazine Capacity 3	Twist Rate 9 1/2"
Barrel Finish High Gloss	Stock Finish Satin
Wood Grade AAAA	Receiver Finish Gloss Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Gloss Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading M13 - 0.75
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,989.99

Item Number 036080298	UPC 023614864585
Action Length Long Action	Caliber 7MM PRC
Barrel Length 24"	Overall Length 44 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 7 lbs 2 oz
Magazine Capacity 3	Twist Rate 8"
Barrel Finish High Gloss	Stock Finish Satin
Wood Grade AAAA	Receiver Finish Gloss Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Gloss Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading M13 - 0.75
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,989.99

Item Number 036080229	UPC 023614864592
Action Length Long Action	Caliber 300 WIN MAG
Barrel Length 26"	Overall Length 46 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 7 lbs 2 oz
Magazine Capacity 3	Twist Rate 10"
Barrel Finish High Gloss	Stock Finish Satin
Wood Grade AAAA	Receiver Finish Gloss Blued
Chamber Finish Polished	Barrel Material Steel
Barrel Contour Sporter	Stock Material Maple
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Gloss Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading M13 - 0.75
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $1,989.99
