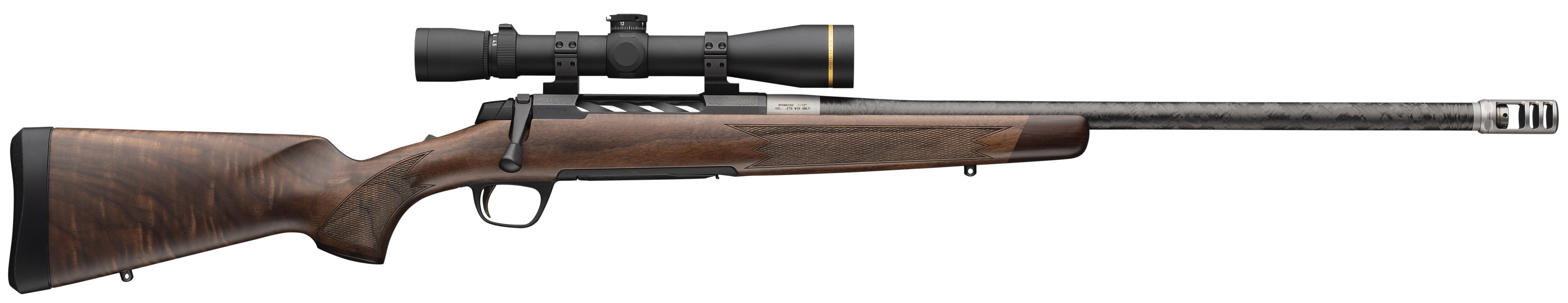

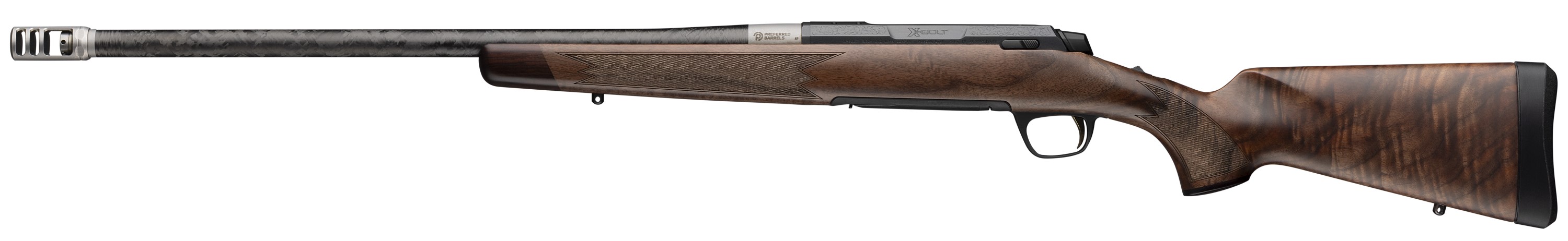

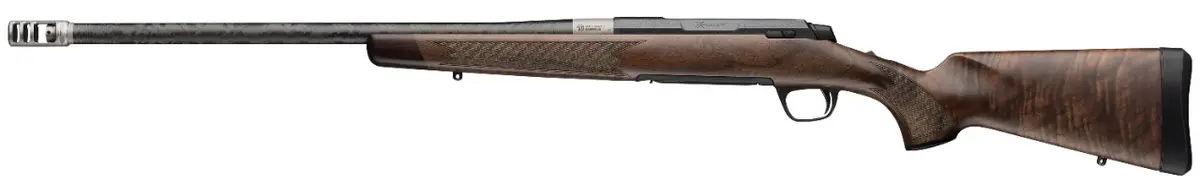

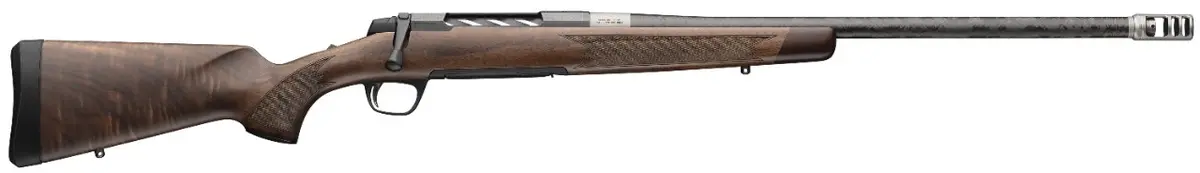

X-Bolt 2 Medallion Carbon Fiber

Overview

Deftly walking the ridgeline between tradition and technology you’ll find a unique rifle, the Browning X-Bolt Medallion Carbon Fiber.

The X-Bolt 2 Medallion Carbon Fiber was developed for the hunter that prefers the tradition of a wood stock and appreciates the improvements that technology provides. The standout feature is the wrapped carbon fiber barrel from Preferred Barrels. Extensive research and testing of Preferred Barrels products has ensured their quality levels and accuracy. Each barrel begins as a blank that is precision bored and button rifled before being stress relieved. The barrels use a stronger, stiffer carbon fiber wrapping process rather than simple carbon fiber sleeve or tube construction like less expensive designs that offer the carbon fiber look without the functional benefits of the wrapping process. Barrels come in standard lengths that vary by caliber. The muzzle is threaded 5/8"-24 and is ready for use with an optional suppressor. A Recoil Hawg muzzle brake and thread protector cap are included. The action is bedded and the barrel is free floated for consistent accuracy.

Traditionalists will naturally be drawn to the beautiful Grade V/VI walnut stock with subdued satin finish and rosewood caps at the fore-end tip and grip cap. Touches like a rounded fore-end tip and point-style checkering retain the classic look, but like other X-Bolt models, this stock has a trim, nimble feel that is fast to the shoulder. A 1-1/4" Inflex recoil pad reduces the impact of felt recoil.

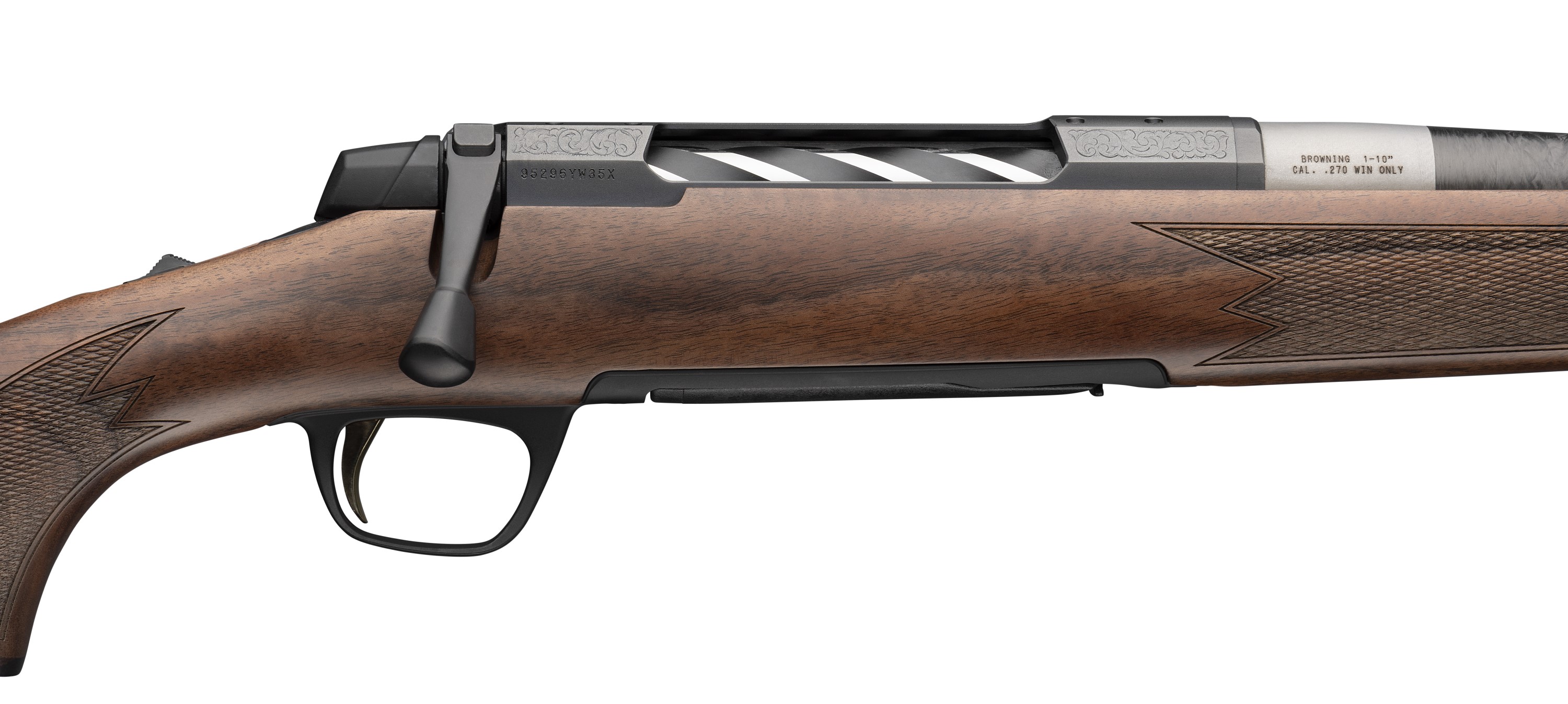

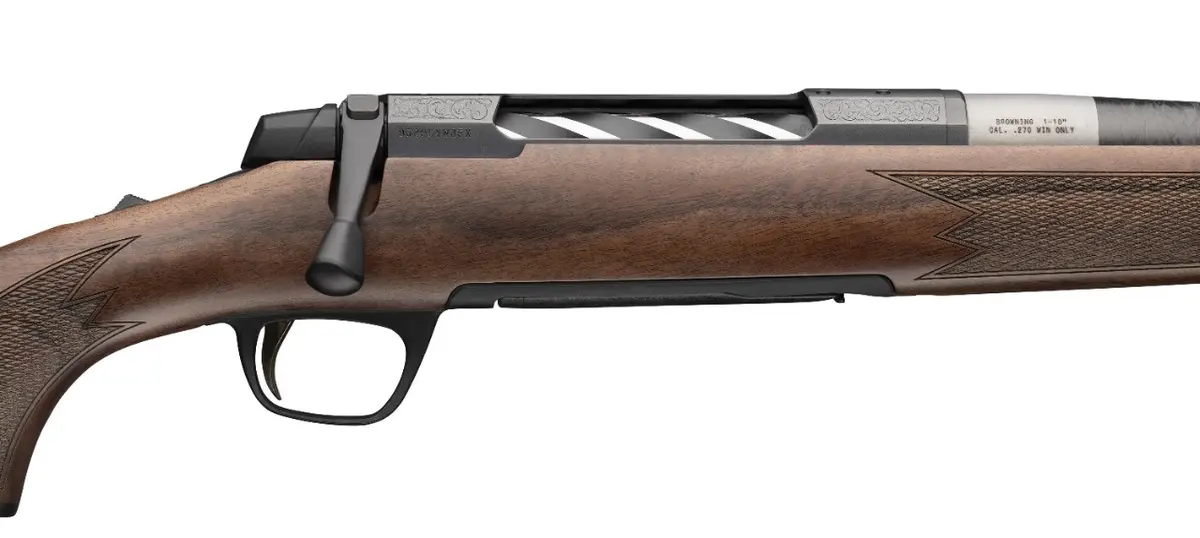

The engraved receiver and bottom metal are finished in a matte blue that looks sharp with the natural carbon of the barrel. The spiral fluted bolt assembly is a matte and polished affair. Low profile bottom metal ensures the focus is on the stock.

Focusing on performance, X-Bolt 2 Hunter is an ideal blend of tradition and design that will satisfy the accuracy needs of shooters. The action is bedded, and the barrel is free floated for consistent accuracy. Functionally, the action has been redesigned with additional bolt guidance surface for smoother cycling. The spiral fluted bolt has also been reworked and is fitted with an improved handle and bolt knob.

The DLX Trigger is a three-lever design that offers zero creep, zero take-up, and zero overtravel performance and comes preset from the factory at 3.5 pounds. (Adjustable down to 3.0 pounds.)

NOTE: Unless specifically listed as included with a firearm, accessories shown such as scopes, optical sights, rings, ring mounts, optic rails, bipod rails, ammunition, etc. are NOT included. Accessories are available at authorized Browning dealers and here on Browning.com.

X-Bolt 2 Medallion Carbon Fiber Features

Engraved receiver with matte blued finish
Satin finished Grade V/VI checkered walnut stock with rosewood fore-end tip and grip cap
Preferred Barrel Blanks stainless steel barrel is wrapped in carbon fiber and features 5/8"-24 muzzle threading with Recoil Hawg (thread protector included)

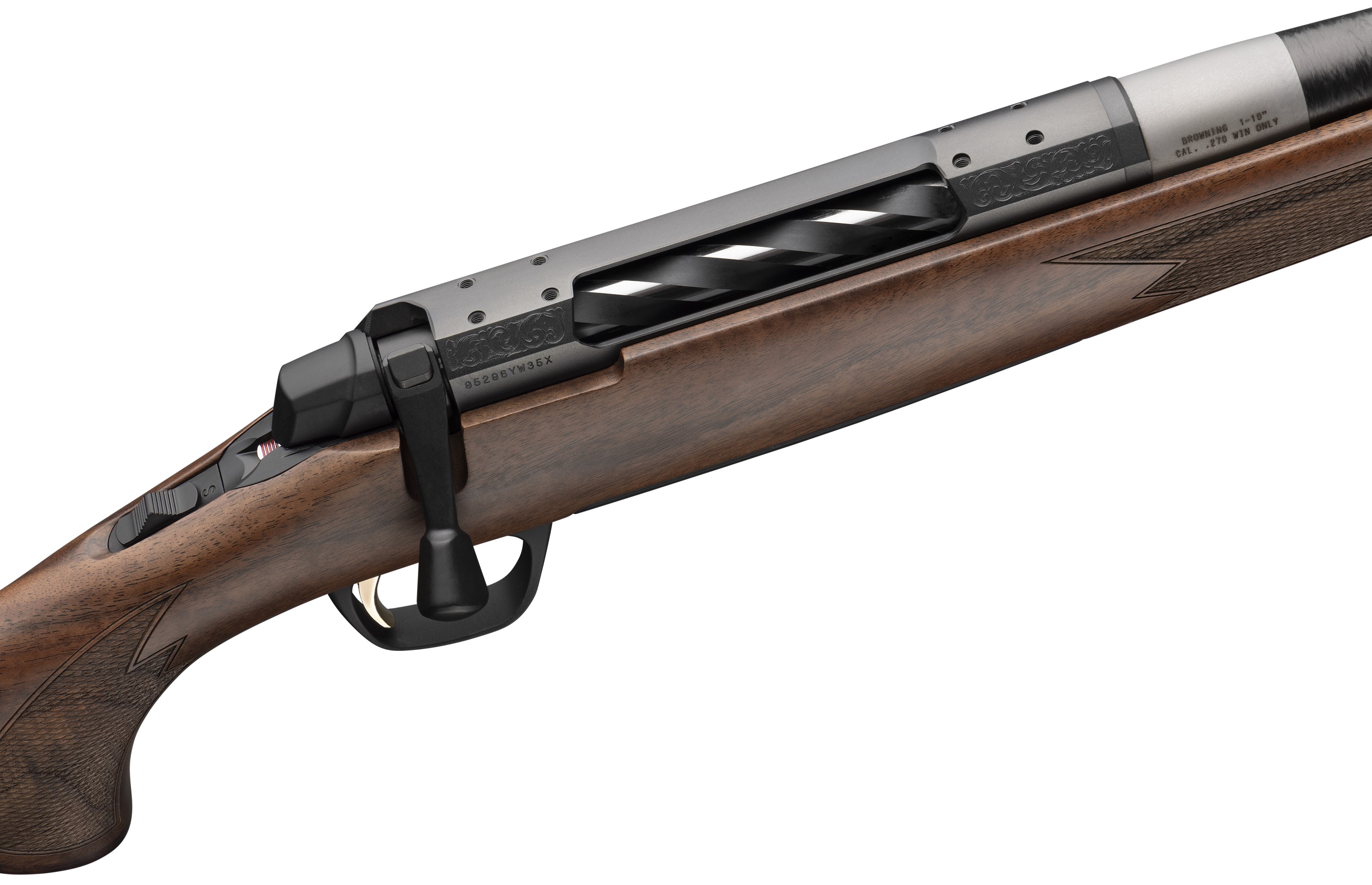

Spiral-fluted bolt with extended handle and ergonomic bolt knob shape
Recoil Hawg muzzle brake (thread protector included)

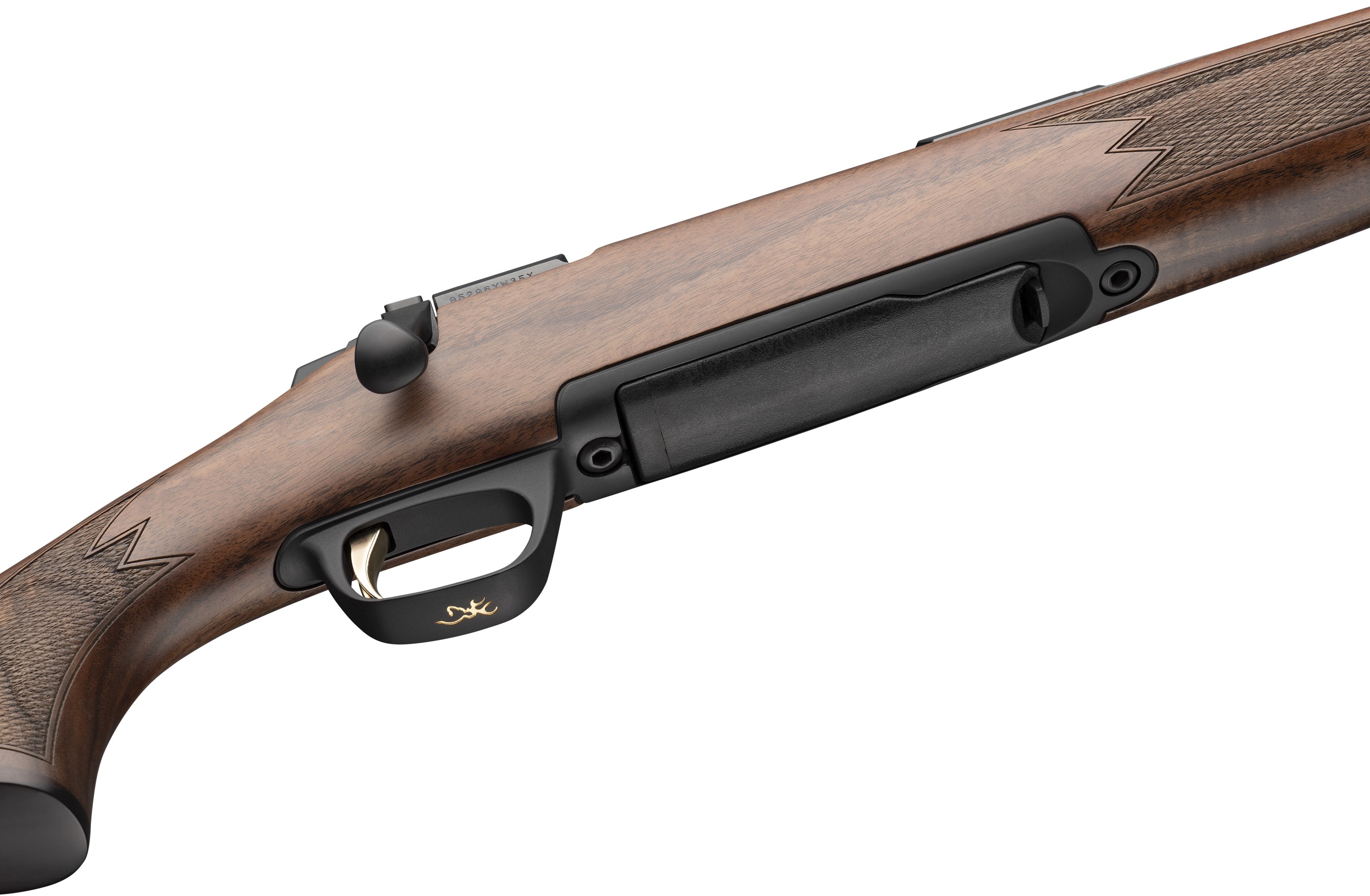

Low-profile bottom metal
Rotary magazine
1-1/4" Inflex recoil pad

X-Bolt 2 Features

Receiver features additional bolt guidance surface area for smoother operation
Patent-pending adjustable DLX Trigger set to hunting weights
The action is bedded at the recoil lug and action screws for stability and to free-float the barrel
Bolt Unlock Button works in conjunction with the top-tang safety to provide an added measure of safety during checking and unloading of the chamber
Easy to reach top-tang safety
Short 60° bolt lift is fast cycling and clears large optics
X-Lock Scope Mounting System uses four screws per base for rock-solid attachment to the receiver

Specifications

Item Number 036090282	UPC 023614864660
Action Length Short Action	Caliber 6.5 CREEDMOOR
Barrel Length 22"	Overall Length 42"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 10 oz
Magazine Capacity 4	Twist Rate 8"
Barrel Finish Carbon Fiber Matte SS	Stock Finish Satin
Wood Grade Grade V/VI	Receiver Finish Carbon Fiber Matte SS
Chamber Finish Polished	Barrel Material Stainless and Carbon Fiber
Barrel Contour Heavy Sporter	Stock Material Black Walnut
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $3,539.99

Item Number 036090218	UPC 023614864677
Action Length Short Action	Caliber 308 Win
Barrel Length 22"	Overall Length 42"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 10 oz
Magazine Capacity 4	Twist Rate 10"
Barrel Finish Carbon Fiber Matte SS	Stock Finish Satin
Wood Grade Grade V/VI	Receiver Finish Carbon Fiber Matte SS
Chamber Finish Polished	Barrel Material Stainless and Carbon Fiber
Barrel Contour Heavy Sporter	Stock Material Black Walnut
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $3,539.99

Item Number 036090224	UPC 023614864684
Action Length Long Action	Caliber 270 Win
Barrel Length 22"	Overall Length 42 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 14 oz
Magazine Capacity 4	Twist Rate 10"
Barrel Finish Carbon Fiber Matte SS	Stock Finish Satin
Wood Grade Grade V/VI	Receiver Finish Carbon Fiber Matte SS
Chamber Finish Polished	Barrel Material Stainless and Carbon Fiber
Barrel Contour Heavy Sporter	Stock Material Black Walnut
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $3,539.99

Item Number 036090226	UPC 023614864691
Action Length Long Action	Caliber 30-06 SPRG
Barrel Length 22"	Overall Length 42 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 6 lbs 14 oz
Magazine Capacity 4	Twist Rate 10"
Barrel Finish Carbon Fiber Matte SS	Stock Finish Satin
Wood Grade Grade V/VI	Receiver Finish Carbon Fiber Matte SS
Chamber Finish Polished	Barrel Material Stainless and Carbon Fiber
Barrel Contour Heavy Sporter	Stock Material Black Walnut
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $3,539.99

Item Number 036090298	UPC 023614864707
Action Length Long Action	Caliber 7MM PRC
Barrel Length 24"	Overall Length 44 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 7 lbs 0 oz
Magazine Capacity 3	Twist Rate 9 1/2"
Barrel Finish Carbon Fiber Matte SS	Stock Finish Satin
Wood Grade Grade V/VI	Receiver Finish Carbon Fiber Matte SS
Chamber Finish Polished	Barrel Material Stainless and Carbon Fiber
Barrel Contour Heavy Sporter	Stock Material Black Walnut
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $3,569.99

Item Number 036090229	UPC 023614864714
Action Length Long Action	Caliber 300 WIN MAG
Barrel Length 26"	Overall Length 46 3/4"
Length of Pull 13 5/8"	Drop at Comb 11/16"
Drop at Heel 1/2"	Weight 7 lbs 2 oz
Magazine Capacity 3	Twist Rate 10"
Barrel Finish Carbon Fiber Matte SS	Stock Finish Satin
Wood Grade Grade V/VI	Receiver Finish Carbon Fiber Matte SS
Chamber Finish Polished	Barrel Material Stainless and Carbon Fiber
Barrel Contour Heavy Sporter	Stock Material Black Walnut
Recoil Pad Inflex 1.25	Checkering Cut 18 LPI
Sling Swivel Studs Matte Blued	Receiver Material Steel
Trigger Finish Gold Plated	Bolt Slide Finish High Gloss
Magazine Type Detachable	Muzzle Threading 5/8 - 24 SR
Trigger Material Alloy	Trigger Guard Material Alloy
Trigger Guard Engraving Buck Mark in Gold	Floor Plate Material Composite
Drilled and Tapped for Scope Yes	MSRP $3,569.99
